Importante
Versión MPP: no compatible con Cisco Unified Communications Manager (CUCM).

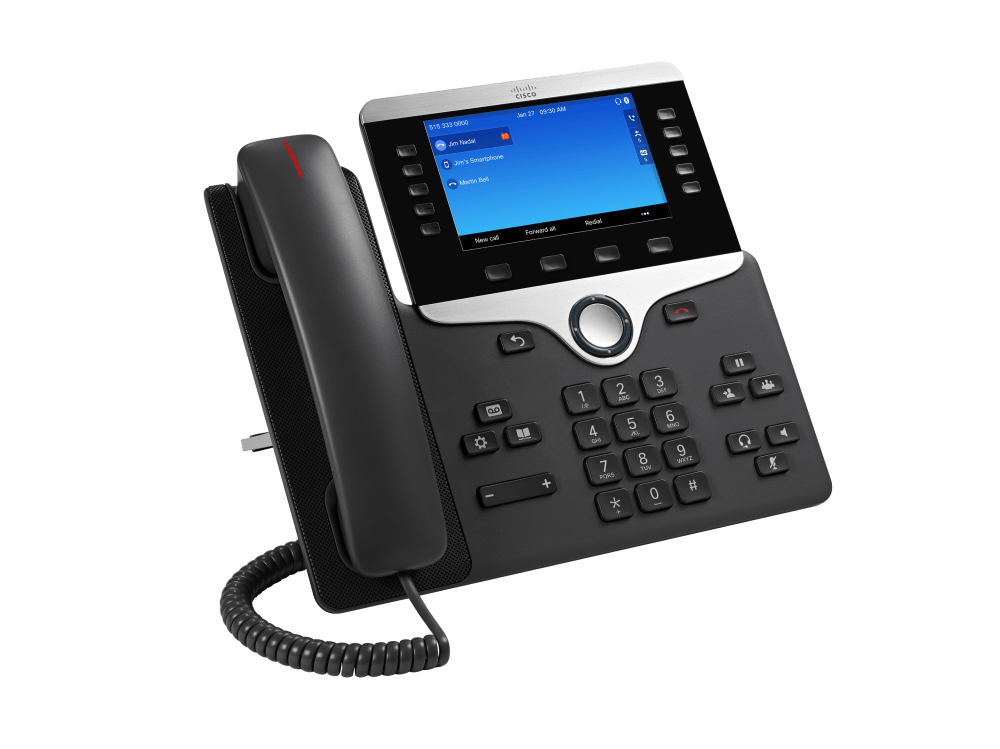

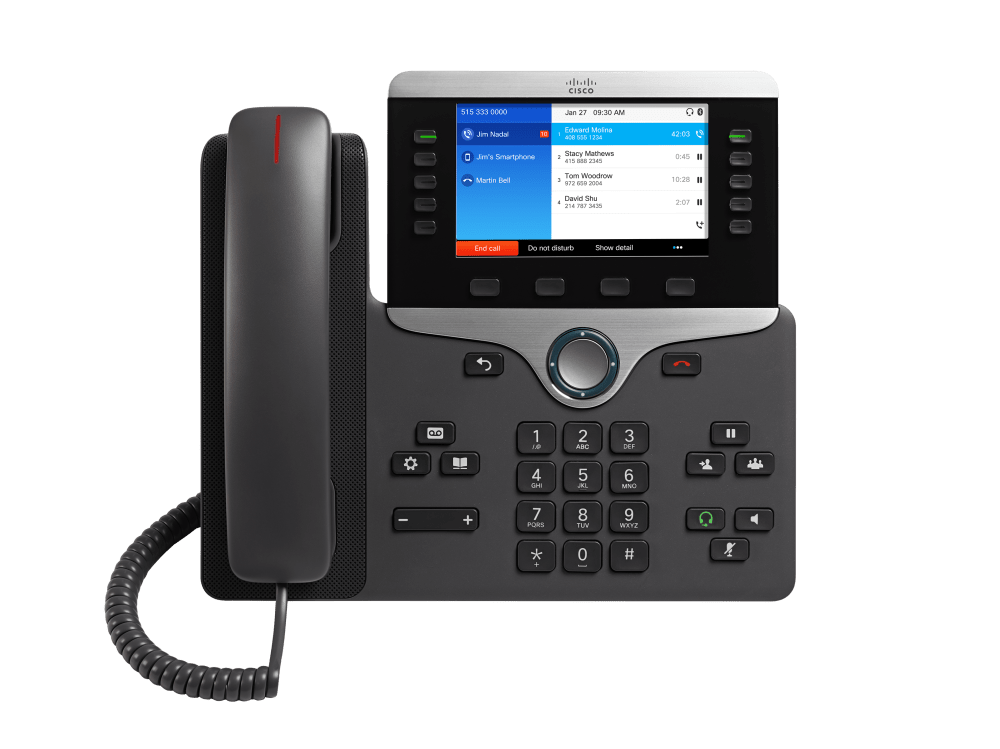

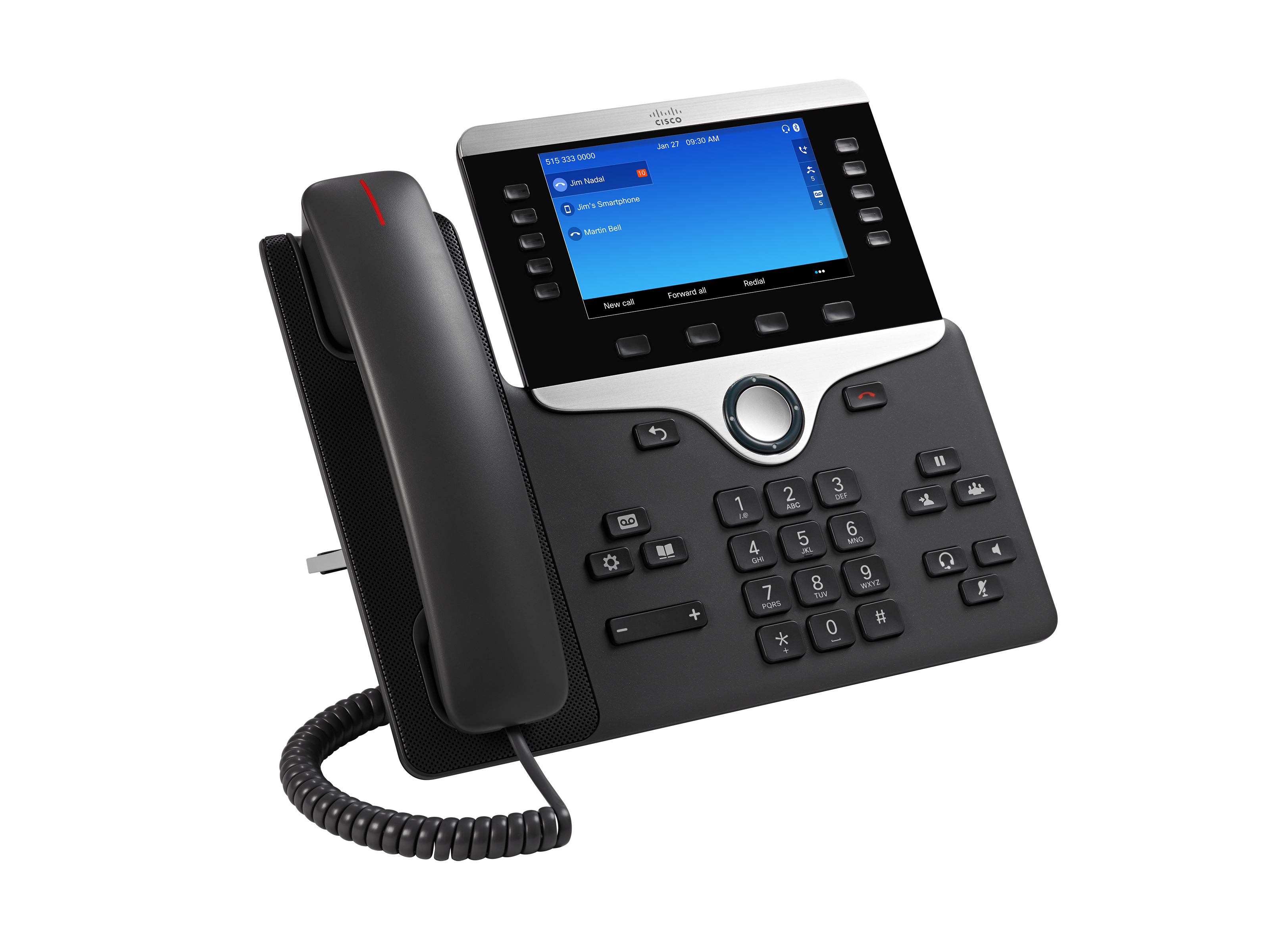

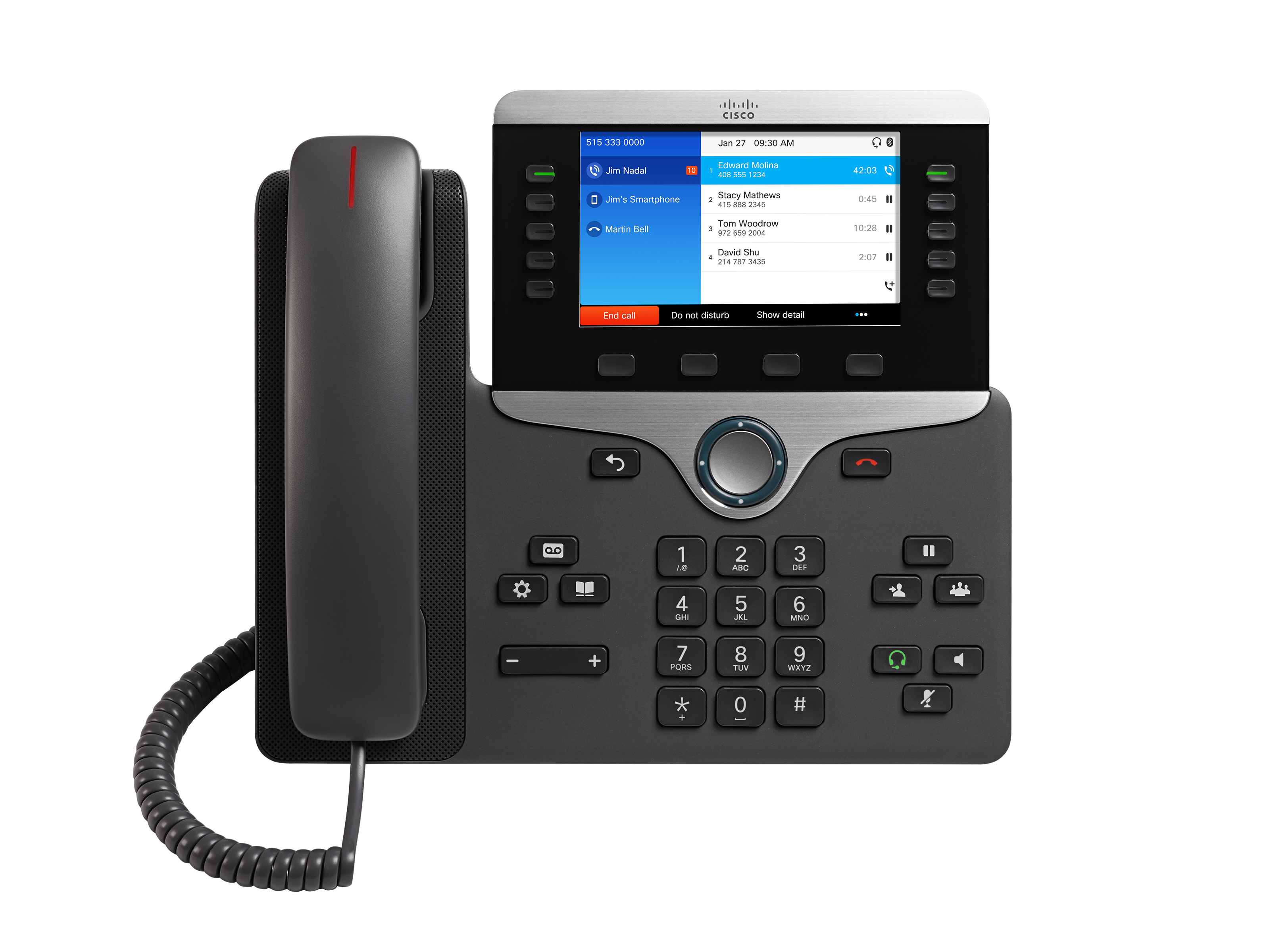

El teléfono IP 8861 combina un nuevo diseño ergonómico atractivo con audio de banda ancha para comunicaciones de voz nítidas, fiabilidad de servicio “siempre activo”, comunicaciones encriptadas para mejorar la seguridad y el acceso a una amplia gama de funciones de comunicaciones unificadas ofrecidas por plataformas de infraestructura de Cisco locales y externas. El teléfono IP 8861 también puede utilizarse con servicios de control de llamadas externos compatibles de terceros.

Características principales

El teléfono IP Cisco 8861 cuenta con una pantalla en color de 5” VGA panorámica de alta resolución (800 x 480) con retroiluminación. Su compatibilidad con distintos idiomas, incluyendo la visualización de texto en pantalla de derecha a izquierda, satisface las necesidades de los usuarios globales.
El teléfono lleva integrado un conmutador de Gigabit Ethernet para la conexión de la red y del PC.
El teléfono es apto para zonas de trabajo con WLAN 802.11a/b/g/n/ac habilitada.
Compatible con la tecnología Cisco EnergyWise™
Un kit opcional de montaje en pared está disponible como accesorio para los clientes que lo deseen.
Posibilidad de añadir hasta tres módulos de expansión de teclado opcionales de teléfono IP 8800 para disfrutar de 84 teclas de línea/función adicionales.

Technical details

Full lines supported: 10 lines (SIP registrations)

Audio features

G.711 a-law and mu-law, G.722, G.729a/b, Internet Low Bitrate Codec (iLBC), and Internet Speech Audio Codec (iSAC), G.722.1, G.772.2, OPUS
Flexibility in placing and receiving calls with hands free thanks to a full-duplex speakerphone
Automatic Gain Control
Comfort Noise Generation
Silence Suppression/Voice Activity Detection
Acoustic Echo Cancellation (AEC)
Dynamic Noise Reduction

Telephony features

+ Dialing
Abbreviated dialing
Adjustable ring tones and volume levels
Adjustable display brightness
Agent greeting
Application launch pad
Auto-answer
Auto-detection of headset
cBarge
Busy Lamp Field (BLF), BLF Pickup & speed dial
Callback
Call forward & call forward notification
Call filter & history lists
Hold, park & pickup call
Call timer
Call waiting
Call chaperone
Caller ID
Corporate directory
Conference, including traditional Join feature
Cross-Cluster Extension Mobility (EMCC)
Direct transfer
Extension mobility
Fast-dial service
Forced access codes and client matter codes
Group call pickup
Intercom
Immediate divert
Malicious-caller ID
Message-Waiting Indicator (MWI)
Meet-me conference
Mobility
Music on Hold (MoH)
Mute
Network profiles (automatic)
On- and off-network distinctive ringing
Personal directory
Predialing before sending
Privacy
Private Line Automated Ringdown (PLAR)
Redial
Ring tone per line appearance
Service Uniform Resource Locator (URL)
Shared line
Silent monitoring and recording
Speed dial
Time and date display
Transfer
Uniform Resource Identifier (URI) dialing
Visual Voicemail
Voicemail
Whisper coaching

Network features

Session Initiation Protocol (SIP) for signaling
Session Description Protocol (SDP)
IPv4 and IPv6
User Datagram Protocol (UDP) (used only for Real-Time Transport Protocol [RTP] streams)
Dynamic Host Configuration Protocol (DHCP) client or static configuration
Gratuitous Address Resolution Protocol (GARP)
Domain Name System (DNS)
Trivial File Transfer Protocol (TFTP)
Secure Hypertext Transfer Protocol (HTTPS)
VLAN
Real-Time Transport Protocol (RTP)
Real-Time Control Protocol (RTCP)
Cisco Peer-to-Peer Distribution Protocol (PPDP)
Cisco Discovery Protocol
LLDP (including LLDP-MED)
Switch speed auto-negotiation

Security features

Secure boot
Secure credential storage
Device authentication
Configuration file authentication and encryption
Image authentication
Random bit generation
Hardware cryptographic acceleration
Certificate Authority Proxy Function (CAPF)
Manufacturer-Installed Certificates (MIC)
Locally Significant Certificates (LSC)
Ethernet 802.1x supplicant options: Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST) and Extensible Authentication Protocol-Transport Layer Security (EAP-TLS)
Signaling authentication and encryption using TLS
Media authentication and encryption using SRTP
HTTPS for client and server
Secure Shell (SSH) Protocol server
SSL-based VPN client

Size (H x W x D): 229.1 mm x 257.34 mm x 40 mm (9.02 in x 10.13 in x 1.57 in)

Weight: 1.19 kg (2.62 lb)

User interface

An easy-to-use interface that provides a traditional telephony-like user experience
The 800 × 480, 24-bit color, 5-in. WVGA display provides scrollable access to calling features and text-based XML applications

The 8861 has the following keys:

Line keys
Soft keys
Back and release keys
Four-way navigation and select keys
Hold/Resume, Transfer, and Conference keys
Messaging, Application, and Directory keys
Standard keypad
Volume-control toggle key
Speakerphone, headset, and mute keys

Cisco applications

Cisco Unified Communications Manager:

8.5.1 (Non-Secured mode Only), 8.6.2, 9.1.2, 10.5.2, 11.0 and later

Cisco Unified Communications Manager Express (Unified CME):

10.0 and later through fast track

Cisco Business Edition 6000 (BE 6000):

8.6.2, 9.1.2, 10.5.2, 11.0 and later

Cisco Hosted Collaboration Solution (HCS):

8.6.2 and later (using supported UCM versions above)

Language support: Arabic, Bulgarian, Catalan, Chinese, Chinese, Croatian, Czech, Danish, Dutch, English, Estonian, French, Finnish, German, Greek, Hebrew, Hungarian, Italian, Japanese, Latvian, Lithuanian, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Slovak, Swedish, Serbian, Serbian, Slovenian, Thai, Turkish

Power: IEEE Power over Ethernet class 4. The phone is compatible with both IEEE 802.3af and 802.3at switch blades and supports both Cisco Discovery Protocol and Link Layer Discovery Protocol - Power over Ethernet (LLDP-PoE).

Compliance
