Importante
Versión MPP: no compatible con Cisco Unified Communications Manager (CUCM).

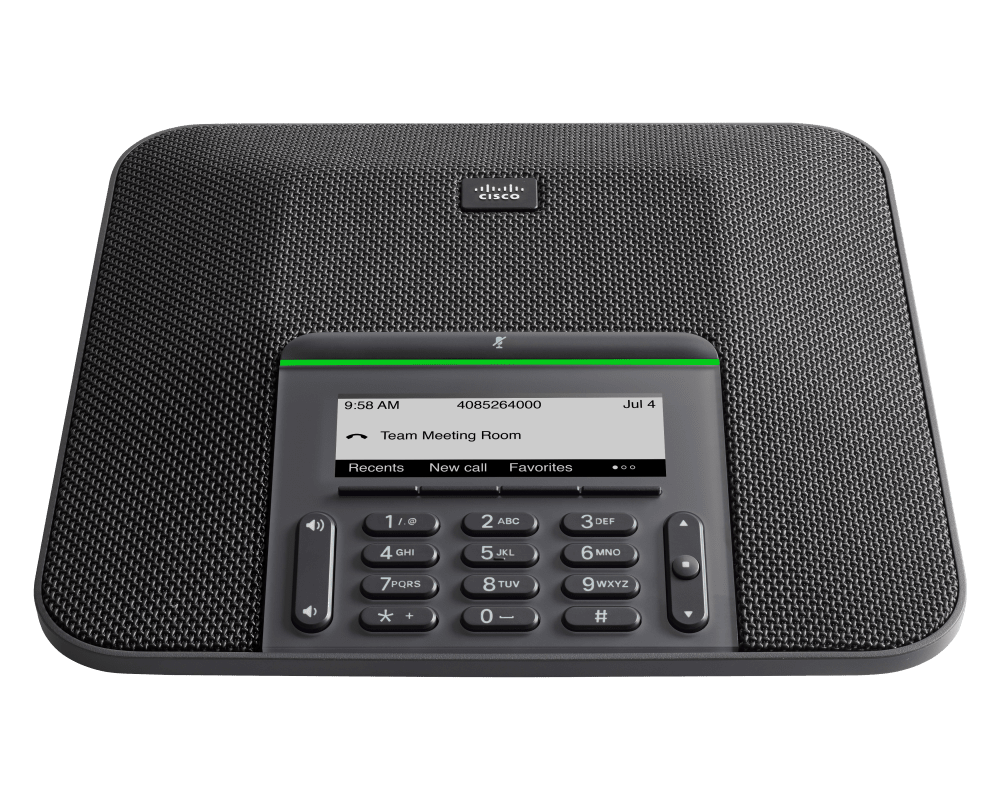

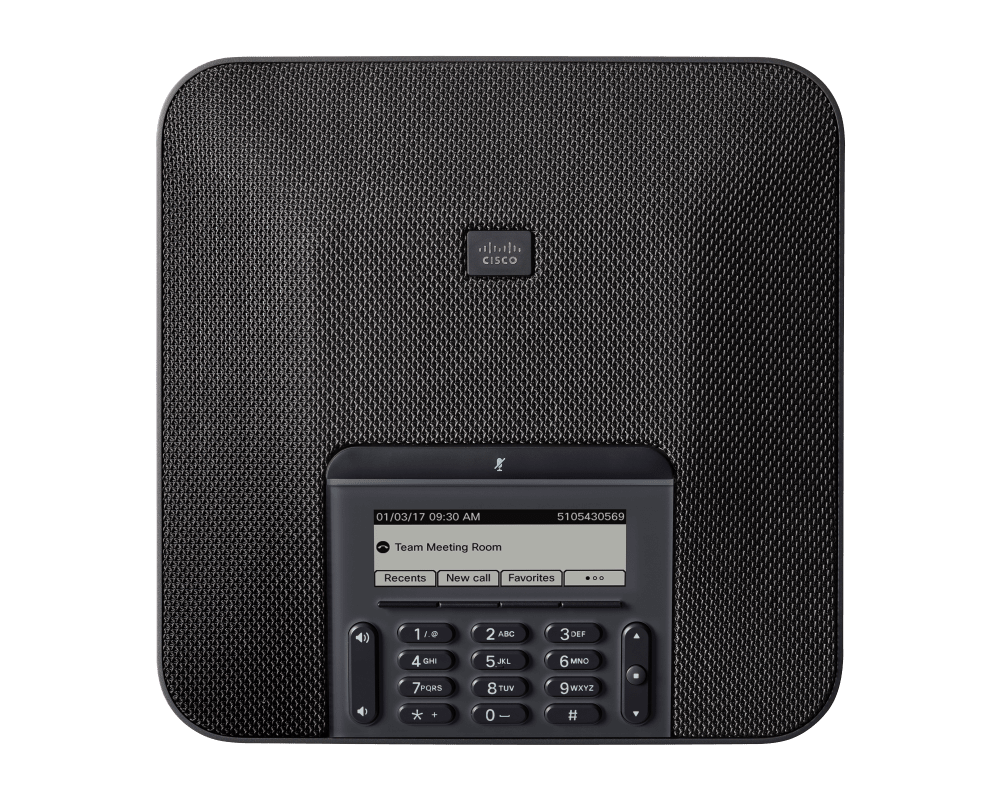

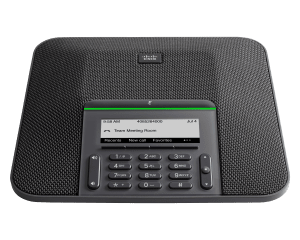

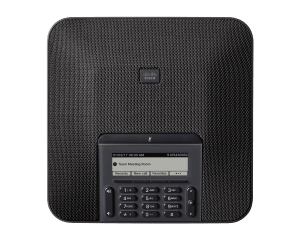

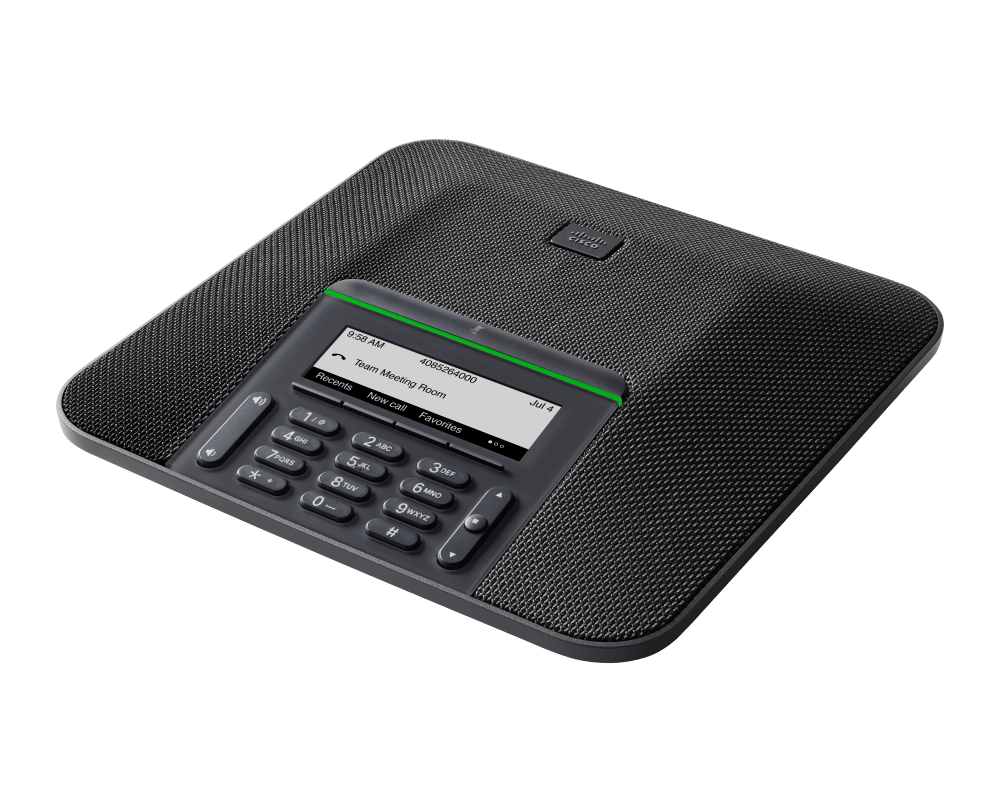

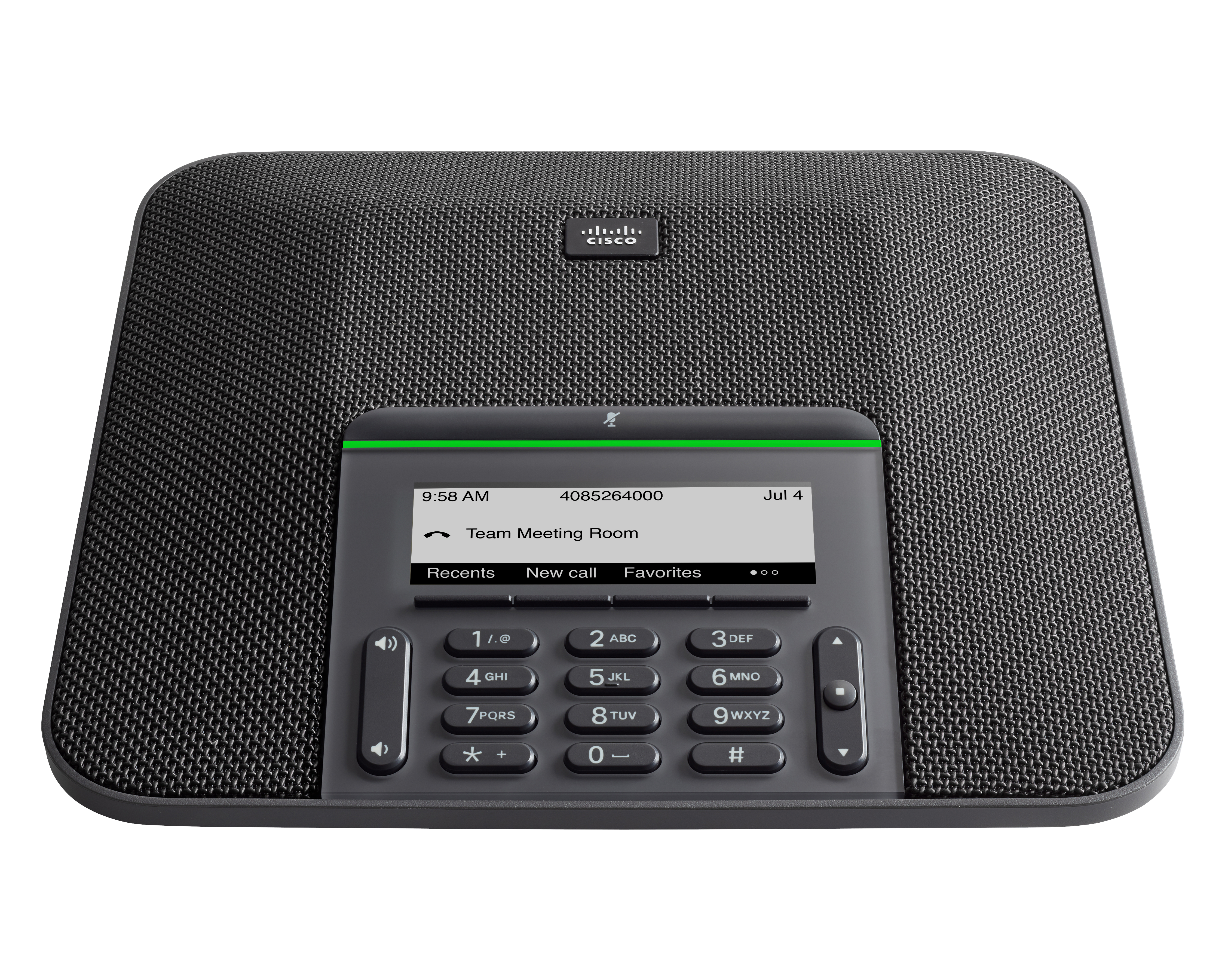

El teléfono IP para conferencias Cisco 7832 ofrece de serie una calidad acústica excepcional que proporciona un sonido magnífico en reducidas dimensiones. Compatible con audio de banda ancha y comunicaciones dúplex, el 7832 permite la realización de conferencias con un sonido cristalino y profesional de la máxima calidad. Sus empleados podrán colaborar más eficientemente entre sí y la productividad de su empresa aumentará.

Funciones para el usuario

Cobertura espacial de 360° para salas de hasta 16 m²
Rango de captación del micrófono de hasta 213 cm desde el terminal
Gran botón de silencio que puede pulsarse desde cualquier lado
Borde elevado que facilita el manejo y la recolocación en la mesa o en el escritorio
Pantalla de 3,4” (8,6 cm) monocromática de píxeles retroiluminada, con protección antideslumbramiento que facilita la interacción y la visualización

Funciones para el administrador

Alimentación a través de Ethernet (PoE) 10/100 (clase 2), por lo que no requiere una fuente de alimentación independiente
Firmware idéntico al de otros terminales de la serie 7800 para simplificar la gestión de dispositivos
Opciones de implantación flexibles con plataformas locales, externas y Cisco Webex Calling
Mayor seguridad al soportar el algoritmo de hash seguro 2 (SHA-2)

Technical details

Full lines supported: 1 line (SIP registration)

Audio features: Audio codec support: G.711a-law and mu-law, wideband (G.722), G.729a, G.729ab, Internet Low Bitrate Codec (iLBC), OPUS

Telephony features

+ Dialing
Abbreviated dial
Adjustable ring tones and volume levels
Auto-answer
Barge
Call back
Call forward
Call history lists
Call timer
Call waiting
Caller ID
Corporate directory
Conference
Cross Cluster Extension Mobility (EMCC)
Dial from the list
Direct transfer
Do not disturb
Extension Mobility (EM)
Hold/Resume
Immediate divert
Join
Message-waiting indicator
Music on hold (MoH)
Mute
Network profiles (automatic)
On- and off-network distinctive ringing
Personal directory
Privacy
Predialing before sending
Redial
Shared line
Speed dial (Favorites)
Time and date display
Transfer
Voicemail (Messages)

Network features

Session Initiation Protocol (SIP) for signaling
Session Description Protocol (SDP)
IPv4
IPv6
User Datagram Protocol (UDP) (used only for Real-Time Transport Protocol [RTP] streams)
Dynamic Host Configuration Protocol (DHCP) client or static configuration
Gratuitous Address Resolution Protocol (GARP)
Domain Name System (DNS)
Trivial File Transfer Protocol (TFTP)
Secure Hypertext Transfer Protocol (HTTPS)
VLAN
Real-Time Transport Protocol (RTP)
Real-Time Control Protocol (RTCP)
Cisco Discovery Protocol
LLDP (including LLDP-MED)
Switch speed auto-negotiation

Security features

Secure credential storage
Image authentication
Random bit generation
Manufacturer-installed certificates (MIC)
Ethernet 802.1X supplicant options: Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST) and Extensible Authentication Protocol-Transport Layer Security (EAP-TLS)
Signaling authentication and encryption using TLS v1.2
Media authentication and encryption using SRTP
HTTPS for client and server
Secure Shell (SSH) Protocol server

Size (H x W x D): 226 mm x 226 mm x 54.4 mm (8.90 in x 8.90 in x 2.14 in)

Weight: 0.907 kg

User interface

384x128 (W x H) monochrome display with white LED backlight
Antiglare and fingerprint-proof bezel

The Cisco 7832 has the following keys:

Four context-dependent soft keys
Two-way navigation and select keys
Standard keypad
Volume-control toggle key
Large mute key accessible from all sides

Cisco applications

Cisco Unified Communications Manager: 10.5 and later
Cisco Hosted Collaboration Solution: 10.5 and later
Cisco Spark Call: Cisco Spark Call support for Cisco cloud solution

Language support: Arabic, Bulgarian, Catalan, Chinese, Chinese, Croatian, Czech, Danish, Dutch, English, Estonian, French, Finnish, German, Greek, Hebrew, Hungarian, Italian, Japanese, Latvian, Lithuanian, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Slovak, Swedish, Serbian, Serbian, Slovenian, Thai, Turkish

Power

10/100 BASE-T Ethernet switch
IEEE PoE Class 2. The phone is compatible with both IEEE 802.3af and 802.3at switch blades and supports both Cisco Discovery Protocol and Link Layer Discovery Protocol
Power over Ethernet (LLDP-PoE)
If the connected LAN switches don’t support PoE, a spare PoE power cable will be needed to work with Cisco Power Cube 3/Power Adapter 3 to provide AC wall power.

Compliance

CE Markings per directives 2014/30/EU and 2014/53/EU and 2014/35/EU

Safety:
