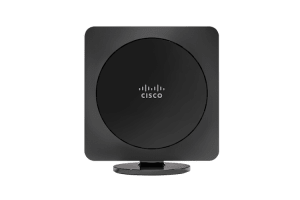

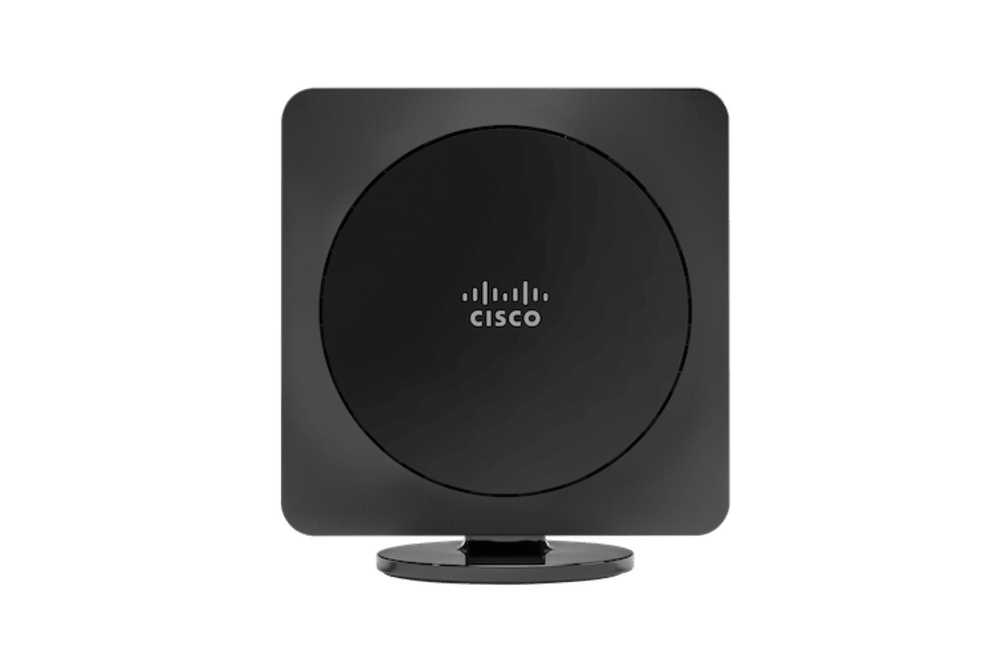

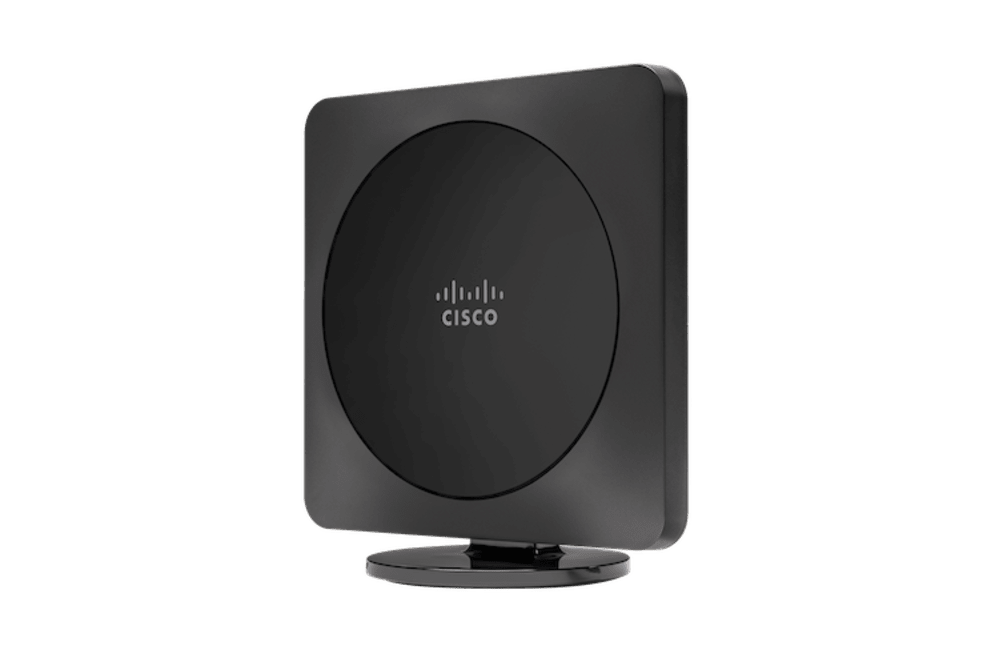

Los teléfonos inalámbricos Cisco IP DECT 6823 y Cisco IP DECT 6825 han sido diseñados para el uso con la estación base monocelda Cisco IP DECT DBS-110. La estación base monocelda Cisco IP DECT DBS-110 admite hasta 20 registros SIP por unidad y hasta 2 estaciones base y 12 repetidores por sistema. En su ampliación máxima, un sistema monocelda admite 20 llamadas de banda estrecha u 8 llamadas de banda ancha simultáneas.

La estación base monocelda 110 funciona en los siguientes rangos de frecuencias:

● 1880 – 1900 MHz (Australia y Nueva Zelanda – potencia reducida a 22 dBM)

● 1880 – 1900 MHz (UE y Asia-Pacífico)

● 1920 – 1930 MHz (EE.UU. y Canadá)

Más información
Ficha técnica

Technical details

Full lines supported: Single-Cell Mode: Up to 30 SIP Registrations, Up 10 Concurrent Calls

Audio features: Codecs: G.711 (A-law and mu-law), G.722.2, G.726, G.729 (a and ab), OPUS

Telephony features

Make a call over any line
Receive a call over any line
Auto-answer
Barge call (shared line)
Redial
Do not disturb
Anonymous call & anonymous call rejection
Caller ID
Three-way conference
Attended & blind transfer
Call swap (to/from)
Call transfer
Call forwarding
Call waiting
Call park, hold & resume
Call return
Shared line / multi-line
Key lock
Emergency call
Narrowband / wideband codecs
DTMF dialing
Distinctive ringing
Ringtone selection
Ringer and receiver volume control
Phonebook search, import, export
Call history (up to 50 entries)
Local phonebook
Remote phonebook / Lightweight Directory Access Protocol (LDAP)
Cisco BroadWorks ® Directory
Speed dial
Voicemail
Message waiting indicator
Full duplex speakerphone
SRTP
HTTPS
Support for provisioning / upgrade

Network features

MAC address (IEEE 802.3)
SIP protocol support (RFC 3261 and companion RFCs)
IPv4 (RFC 791)
DNS: A record (RFC 1706), SRV record (RFC 2782)
Dynamic Host Configuration Protocol (DHCP) (RFC 2131)
Simple Network Time Protocol (SNTP) (RFC 2030)
Network Address Translation (NAT) traversal, serial tunnel (STUN)
User Datagram Protocol (UDP) / Transmission Control Protocol (TCP)
Link Layer Discovery Protocol (LLDP)

Security features

Certificates
Transport Layer Security (TLS)
Media encryption via Secure Real-Time Transport Protocol (SRTP)
Encrypted configuration files
Digest authentication
Password-protect handset
HTTPs secure provisioning
Secure call

Size (H x W x D): 121 x 121 x 31 mm (4.75 x 4.75 x 1.2 in)

Weight

Cisco 110 IP DECT Base Station:

167g

Incl. foot stand:

231g

Cisco applications

Cisco Webex Calling
Webex Calling Carrier
Cisco BroadWorks

3rd party applications

Astersik
Metaswitch

Language support: Croatian, Czech, Danish, Dutch, English, French, German, Hungarian, Italian, Norwegian, Polish, Portuguese, Serbian, Spanish, Slovak, Swedish, Slovenian, Turkish

Power
