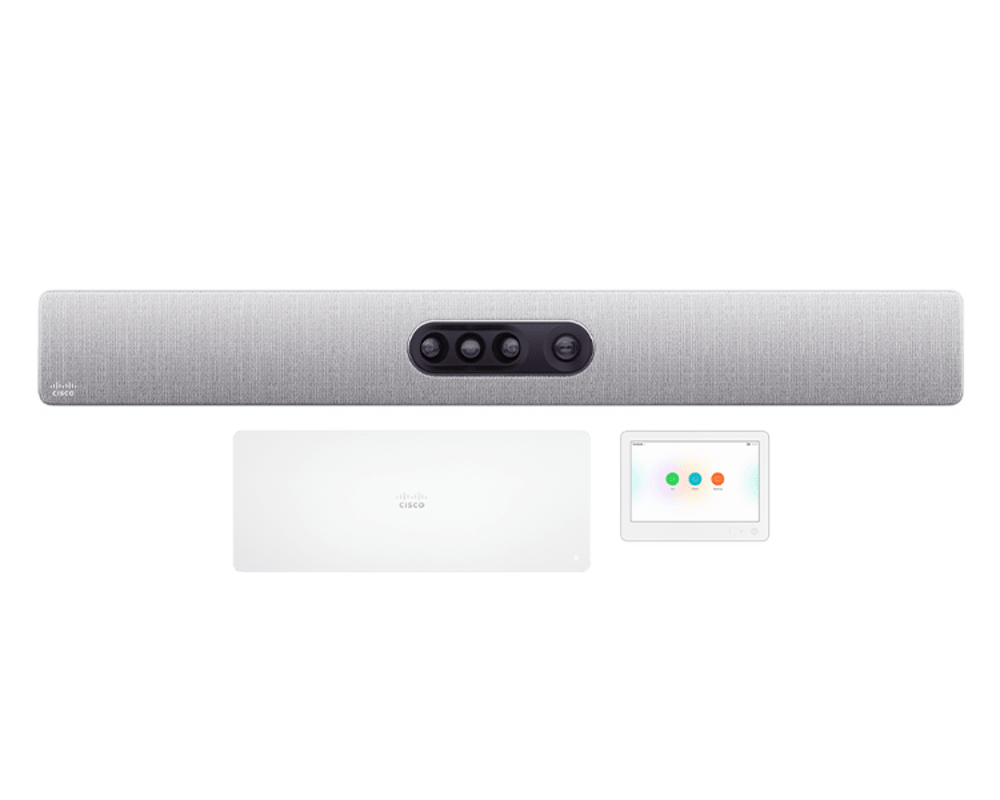

Cisco Room Kit Plus es una potente solución de colaboración dotada de Códec Plus y de la barra inteligente de cámara cuádruple. Se integra con pantallas planas para ofrecer más inteligencia y usabilidad en salas de reuniones de tamaño medio o grande, ya sea registrándose localmente en las instalaciones o en la nube de Webex.

Detalles

Para salas de mayor anchura y profundidad con hasta 14 personas
Códec Plus autónomo y cámara cuádruple
Altavoces y micrófonos integrados
RoomOS, unidad de control Touch 10

Technical details

Video features

Video standards:

H.264, H.265, H.263 for TANDBERG MXP interop only (check Admin Guide)

Video inputs:

One HDMI input supports formats up to maximum 1080p60
Two HDMI inputs support formats up to maximum 4K (3840 x 2160) at 30 fps including HD1080p60
Extended Display Identification Data (EDID)
Consumer Electronics Control (CEC) 2.0

Video outputs:

Two HDMI outputs support formats up to 3840 x 2160p60 (4Kp60)
Consumer Electronics Control (CEC) 2.0

Speakers (Quad Camera):

High-quality speakers
Frequency response: 70 Hz to 20 kHz
Max output level SPL 90dB

Speaker tracking (Quad Camera, SpeakerTrack 60):

6-element microphone array for accurate speaker tracking
Quad Camera can support group framing feature with 5x zoom capability
SpeakerTrack 60 can support close-up feature with 20x zoom capability

PresenterTrack (PTZ 4K Camera, Precision 60)

AI-powered face and upper body detection capability
Camera automatically follows the active presenter within a defined zone and helps ensure optimized view

Dual stream:

H.239 (H.323) dual stream
BFCP Session Initiation Protocol (SIP) dual stream
Supports resolutions up to 3840 x 2160p5 (4Kp5),1080p30 and 720p60

Wireless sharing:

Webex clients (up to 3840 x 2160p5)
Cisco Intelligent Proximity client (up to 1920 x 1080p5)

Audio features

Audio standards:

G.711, G.722, G.722.1, G.729, AAC-LD and OPUS

Audio features:

High-quality 20 kHz audio
Subwoofer line out for Quad Camera
Prepared for inductive loop (line out)
Automatic Gain Control (AGC)
Automatic noise reduction
Active lip synchronization

Audio inputs:

Three microphones, 4-pin mini-jack
Embedded audio on two HDMI inputs

Audio outputs:

1 line out mini-jack (stereo) (Codec Plus)
1 RCA output for subwoofer (Quad Camera)
Embedded audio on one HDMI output
HDMI input #1 supports Audio Return Channel (ARC): Audio output to Quad Camera

Network features

DNS lookup for service configuration
Differentiated services (Quality of Service [QoS])
IP-adaptive bandwidth management (including flow control)
Automatic gatekeeper discovery
Dynamic playout and lip-sync buffering
H.245 Dual-Tone Multi-Frequency (DTMF) tones in H.323
RFC 4733 DTMF tones in SIP
Date and time support using Network Time Protocol (NTP)
Uniform Resource Identifier (URI) dialing
Dynamic Host Configuration Protocol (DHCP)
802.1X network authentication
802.1Q Virtual LAN
802.1p [QoS and Class of Service (CoS)]
Cisco Media Assure and ClearPath, including packet loss-based downspeeding

Security features

Management using HTTPS and SSH
IP administration password
Password to access administration features on Webex Room Navigator controller
Disable IP services
Network settings protection

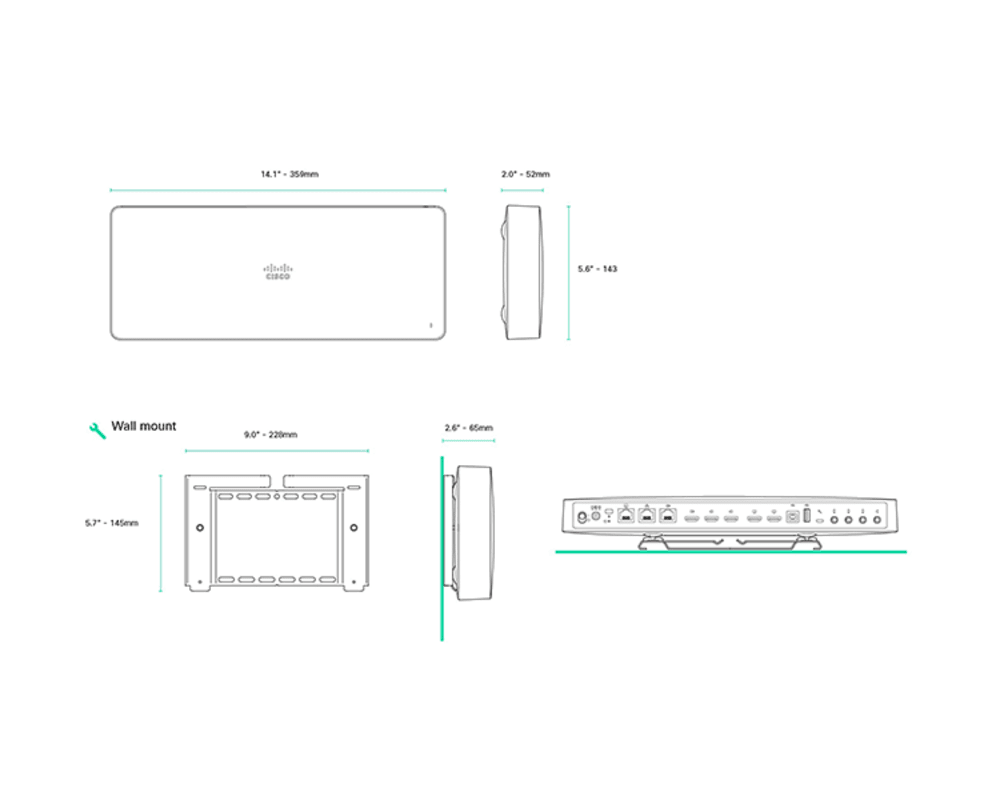

Size (H x W x D)

Codec Plus: 4.3 cm x 35.9 cm x 14.3 cm (1.7 in x 14.1 in x 5.6 in.)
Quad Camera: 12.0 cm x 95.0 cm x 10.3 cm (4.7 in x 37.4 in x 4.0 in)

Weight

Codec Plus: 1.77 kg
Quad Camera: 4.8 kg

Software and user interface

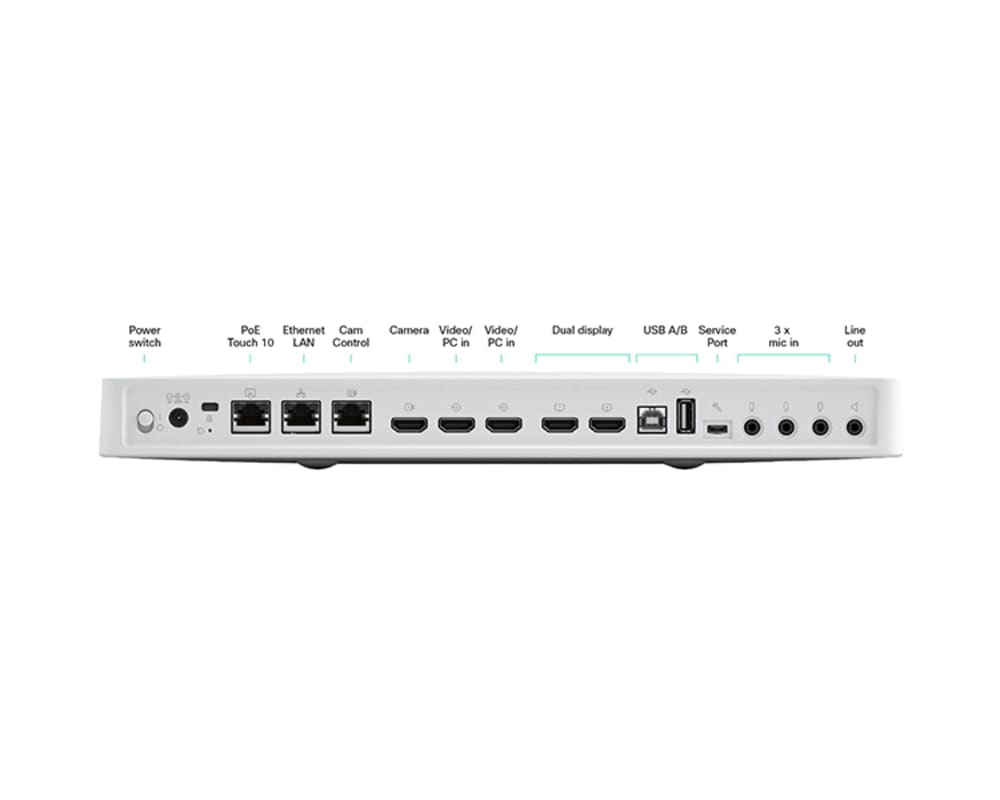

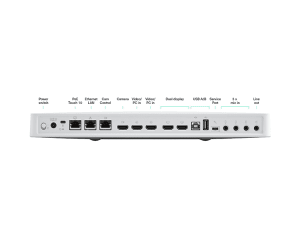

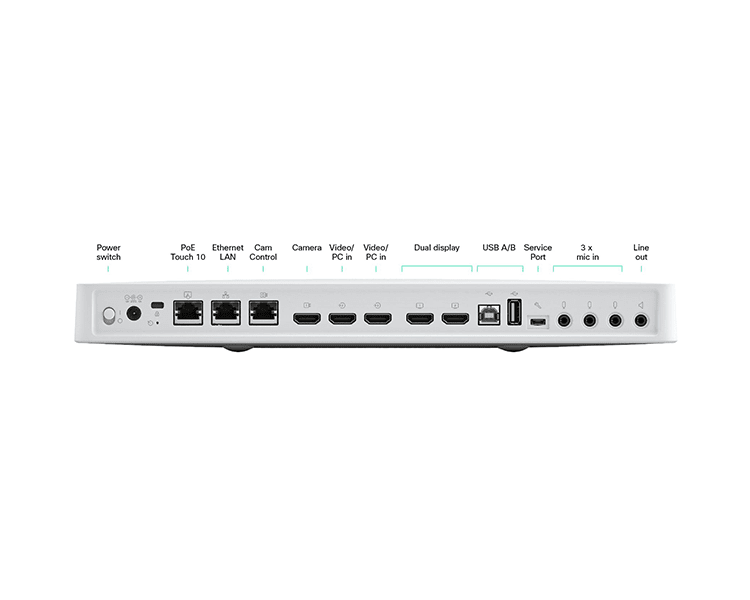

1 Ethernet (RJ-45) 10/100/1000 for LAN
1 Ethernet (RJ-45) 10/100/1000 for direct pairing with camera (camera control)
1 Ethernet (RJ-45) 10/100/1000 with PoE, for direct pairing with Webex Room Navigator
Wi-Fi 802.11a/b/g/n/ac 2.4 GHz and 5 GHz for LAN
2x2 multiple input and multiple output (MIMO)

Other interfaces:
