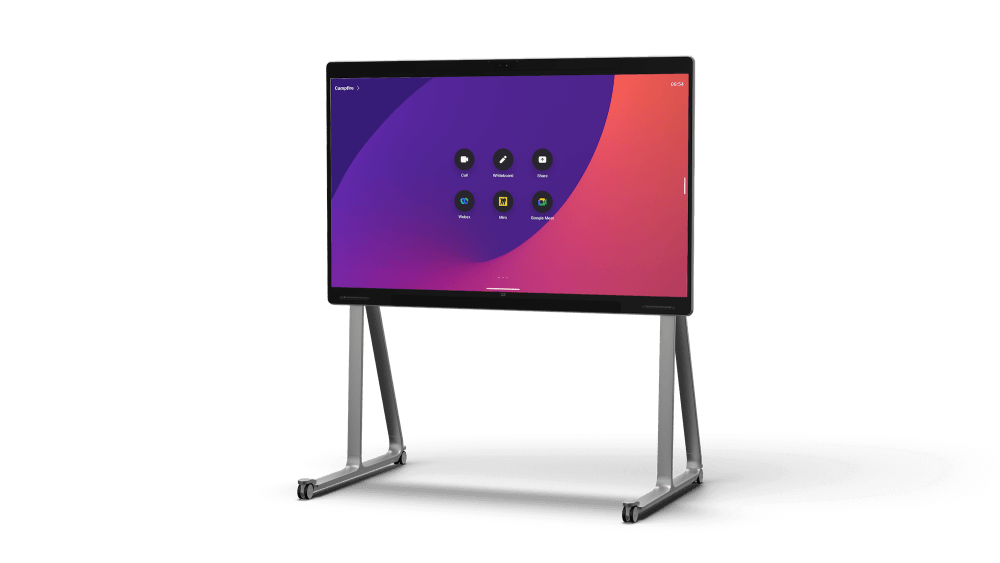

Diseñado para espacios pequeños y de trabajo en común con hasta cinco personas, Cisco Board Pro 55 es un dispositivo de colaboración todo en uno.

Presentación inalámbrica

Comparta una presentación de forma inalámbrica –local o remotamente– desde un ordenador portátil (HDMI disponible) o desde su app Webex.

Pizarra digital

Cree o edite contenido en la pizarra y guárdelo en un espacio de la app Webex, o envíelo directamente como anexo de e-mail desde la pizarra.
Colabore en tiempo real con participantes remotos en otras pizarras Webex o con participantes que utilicen la app Webex.
Acceda a las funciones de la pizarra virtual desde cualquier app Webex.
Haga notas en el contenido compartido

Flujo de trabajo continuo

El registro en la nube hace que todo lo creado en la pizarra Cisco se guarde directamente y de forma segura en la nube y se asocie a un espacio virtual de la app Webex.
Ofrece cifrado de extremo a extremo, por lo que sus comunicaciones y su contenido están seguros.

Se requiere una licencia/suscripción de dispositivos webex específica para utilizar el dispositivo.

Technical details

Full lines supported: 5-way embedded SIP/H.323 conferencing capability with MultiSite option

Video features

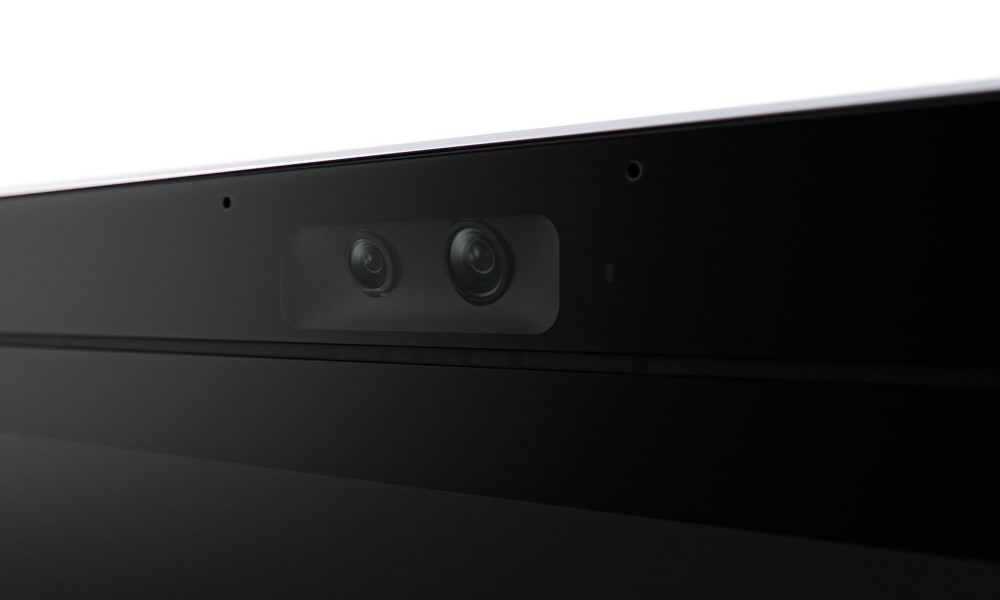

Cameras:

Dual 4K, 12PM camera
Automatic best view and speaker tracking
Automatic brightness and white balance
5x manual zoom
3x digital zoom via SpeakerTrack

Main camera:

85° horizontal field of view, 64° vertical field of view
Dual f/1.7-f/2.4 aperture
12 MP image sensor, 30 fps
1/2.3" CMOS, PDAF technology

Ultra-wide camera:

120° horizontal field of view, 90° vertical field of view
f/2.0 aperture
12 MP image sensor, 30 fps
1/2.3" CMOS

Video standards:

H.264 AVC, H.265 HEVC, H.263

Performance features:

Native screen resolution up to 4K p60
Main video resolution up to 1080p30
Content sharing resolution up to 4Kp15
H.323/SIP/Webex up to 6 Mbps point to point
Full duplex audio with high-quality stereo sound
Full Application Programming Interfaces (APIs)
Cisco Media Assure packet loss protection

Supported resolution:

Screen: 4Kp60
Main video: 1080p30
Content sharing: 4Kp15

Video inputs:

USB-C DisplayPort Alternate Mode up to 3840 x 2160p60 (4Kp60)
HDMI 2.0 type A input supports formats up to 3840 x 2160p30 (4kp30)
HDCP

Video outputs:

HDMI 2.0 type A up to 3840 x 2160p60 (4kp60) *

Audio features

Audio standards:

G.711, G.722, G.722.1, G.729, AAC-LD, and Opus

Audio features:

Acoustic Echo Cancellation (AEC)
Active Lip Synchronization
AI-Powered Noise Removal
Automatic Gain Control (AGC)
Beamforming Microphones
De-Reverberation
Full Duplex
Full-Band Audio
Noise Reduction
Self-Hear
Spatial Audio
Ultrasound Technology

Audio inputs:

2 analog microphone inputs
1 HDMI input
1 USB-C
1 USB-A
Bluetooth ® - Not available on Non Radio Version

Audio outputs:

1 analog line out (stereo 3.5mm minijack)
1 HDMI output*
1 USB-C output
1 USB-A output
Bluetooth ® - Not available on Non Radio Version**

Network features

1 x Ethernet (RJ-45) 100/1000 Mbps (external network)
1 x Ethernet (RJ-45) 100/1000 Mbps PoE port enabled (devices control)
Wi-Fi 802.11a/b/g/n/ac (2.4 and 5 GHz) - not available in non-radio versions
Note: Due to compliance regulations, it is required to enable 802.11d in the access point for the product to operate properly within 5725 MHz – 5875 MHz while helping to achieve better performance on other frequencies at the same time. A Wi-Fi connection can be used as a flexible option. Ethernet connection is always preferred for high performance.
IPv4 Dynamic Host Configuration Protocol (DHCP) / static
IPv6 (both static and stateless address auto-configuration) Network Time Protocol (NTP)
HTTP(S) proxy support (for signaling, not media)
Inspecting TLS proxy supported
Cisco Discovery Protocol (CDP)
802.1X network authentication (passphrase or X.509 client certificate)
802.1Q virtual LAN
802.1p (Quality of Service [QoS] and Class of Service [CoS])

Security features

Secure management using HTTPS and SSH protocols
Password protection for IP administration
End-to-end encryption for calls and meetings on Webex
Standards-based media encryption on all back-ends (Secure Real-time Transport Protocol [SRTP], using AES-128-GCM or AES-256-GCM)
Password protection to access administration available on Room Navigator controller
Option to disable IP services
Network settings protection

Cables included

Ethernet cable (16,4 feet / 5 meters)
Power cord according to country specified in order

Size (H x W x D)

Main unit (spare)
Package size:

1508 mm x 242 mm x 1000 mm (60 in x 9.5 in x 39.4 in)

Wall-mount kit
Package size:

Wall Mount Kit 55”: 1282 mm x 233 mm x 117mm (50.47 in x9.17 in x 4.61 in)
Spare Wall Mount Kit 55”: 1282 mm x 904 mm x 261 mm (50,47 in x35,59 in x10,28 in)

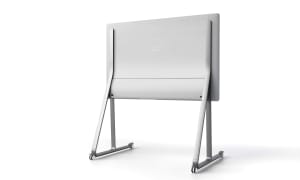

Floor stand
Package size:

Floor Stand Kit 55”: 1569 mm x 1151 mm x189mm (61.77 in x45.31 in x7.44 in)
Spare Floor Stand Kit 55”: 1569 mm x 1151 mm x 333mm (61.77 in x45.31 in x13.11 in)

Wheel upgrade kit
Package size:

858 mm x 328 mm x 99mm (33.78 in x12.91 in x3.9 in)

Weight

Board only: 40 kg
Floor stand: 27 kg
Wheel upgrade kit: 5.8 kg
Wall mount: 4.5 kg

Software and user interface

Software compatibility:

RoomOS 10.10 or later for cloud registered devices
RoomOS 10.11 or later for on-premises deployments

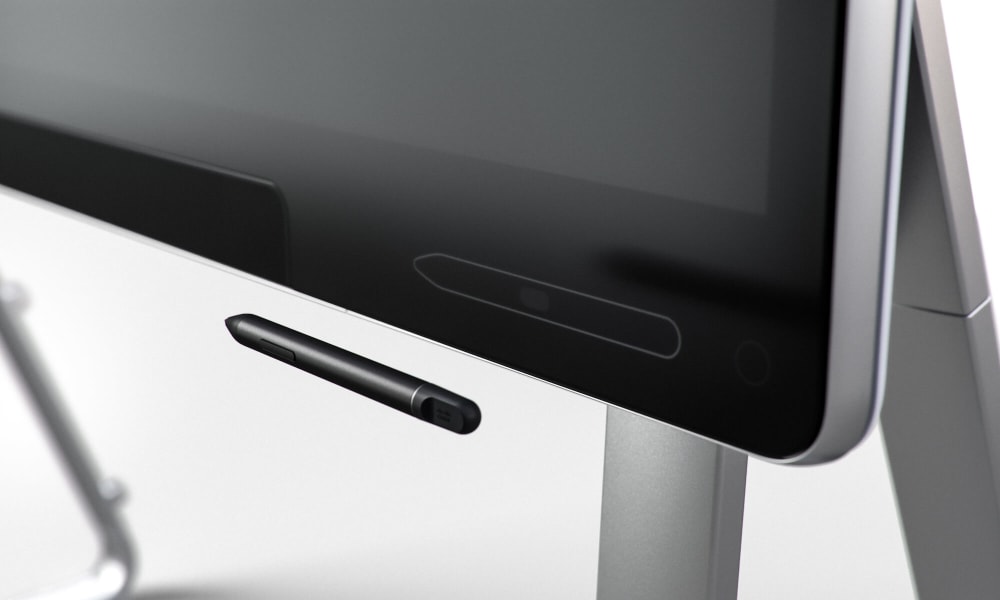

User interface:

In-cell projected capacitive touch
Optically bonded cover glass
Multi-touch
Active stylus-enabled
Stylus-finger differentiation

Cisco applications

Activation and connection to Webex
Native registration with Cisco Unified Communications Manager (UCM) or Cisco Expressway™ (from version 10.5.2 or later with device pack)

Language support: Arabic, Czech, Danish, German, English, Catalonian, Spanish, Finnish, French, Canadian French, Hebrew, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish, Chinese
