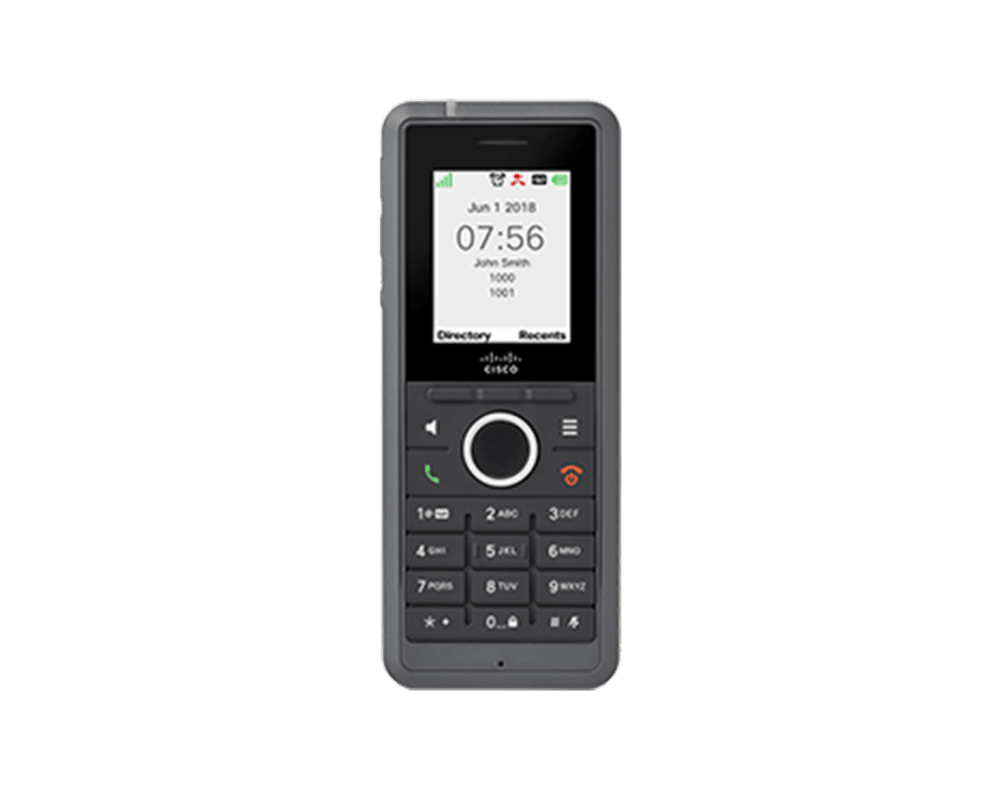

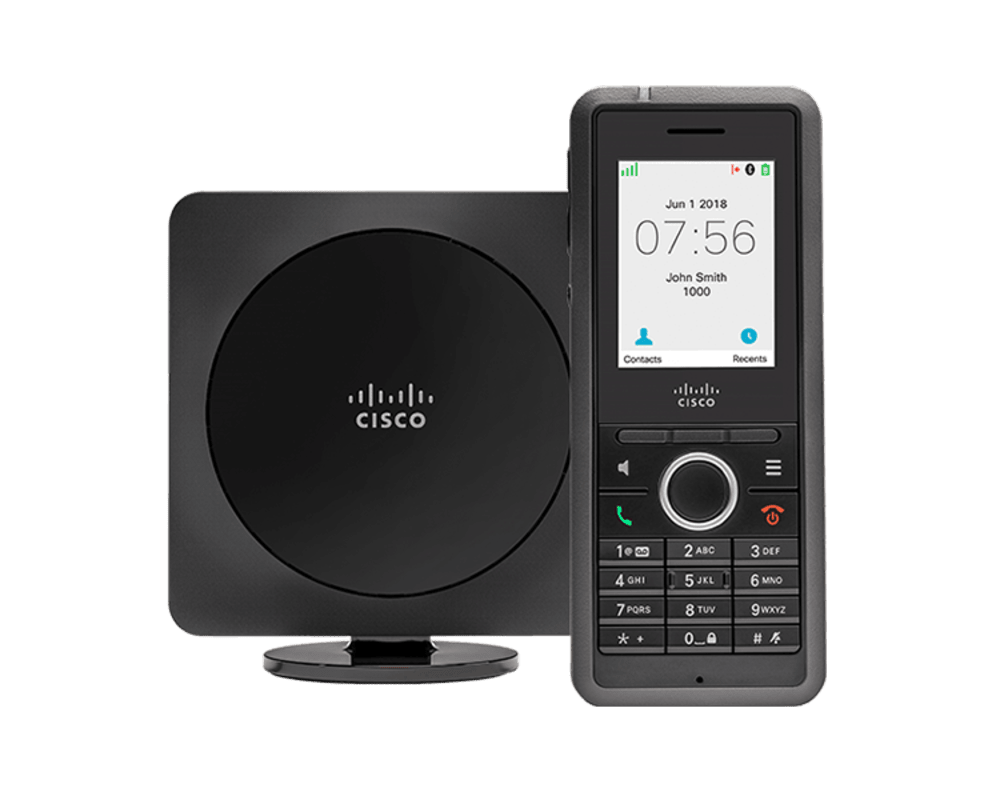

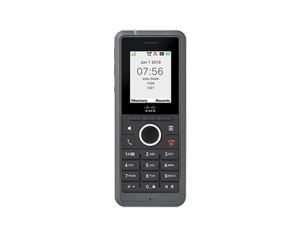

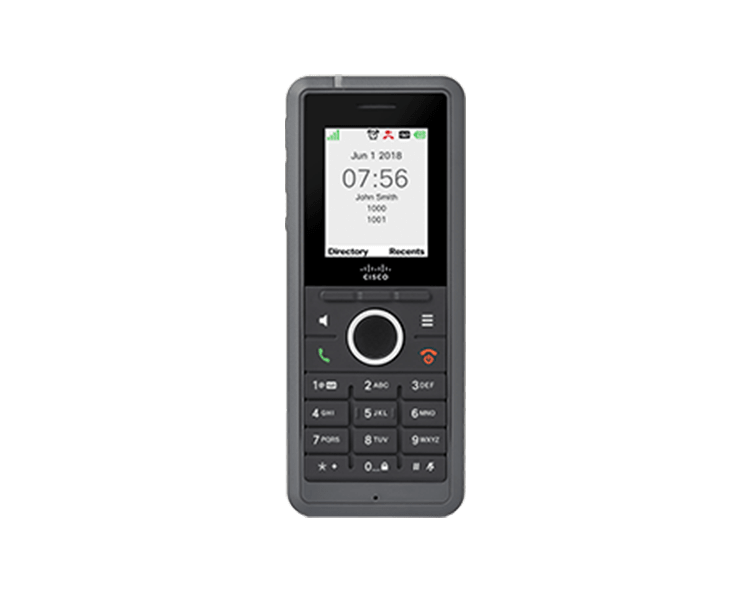

El teléfono inalámbrico Cisco IP DECT 6823 ha sido diseñado para el uso con la estación base monocelda Cisco IP DECT DBS-110 o la estación base multicelda Cisco IP DECT DBS-210. Juntos, estos productos forman una solución móvil DECT fácil de usar para la comunicación por IP (VoIP). El teléfono inalámbrico 6823 posee un diseño cómodo y elegante que se engancha al cinturón o se encaja fácilmente en el bolsillo del usuario cuando este de desplaza por el lugar de trabajo. La pantalla gráfica de alta resolución en color ofrece una experiencia de usuario intuitiva, permitiendo contestar a las llamadas rápidamente y activar funciones como transferencia, conferencia y puesta en espera con total fiabilidad. Cada teléfono inalámbrico admite audio de banda ancha y ofrece un tiempo de conversación prolongado en un sistema de alto rendimiento a un precio atractivo.

Diseño ergonómico
Interfaz fácil de utilizar que ofrece una experiencia de usuario similar a la de la telefonía tradicional de telecomunicación digital inalámbrica mejorada (DECT).

Pantalla gráfica
Pantalla TFT de 1,7” (4,3 cm), 128 x 160 píxeles, 64K

Auriculares
Auriculares con cable de 3,5 mm, compatibles con iPhone
La serie 6800 ofrece un aislamiento excepcional del ruido al utilizarse con auriculares Cisco.

Alimentación

Tipo de batería: iones de litio, recargable
Tiempo de carga en la base: 6 horas
Tiempo de conversación: 17 horas (banda estrecha), 12 horas (banda ancha)
Tiempo en espera: 200 horas

Más información
Ficha técnica

Technical details

Full lines supported

Cisco 6823 IP DECT Handset:

2 lines (SIP registrations)

Cisco 110 IP DECT Base Station:

Single-Cell Mode: Up to 30 SIP Registrations, Up 10 Concurrent Calls

Audio features

Cisco 6823 IP DECT Handset:

G722 codec for HD audio
G726 codec for narrow band audio
HD audio speakerphone
A volume-control toggle provides easy decibel-level adjustments of the handset, monitor speaker, and ringer.
A full-duplex speakerphone for flexibility in placing and receiving calls
A headset can be connected via a 3.5 mm wire.

Cisco 110 IP DECT Base Station:

Codecs: G.711 (A-law and mu-law), G.722.2, G.726, G.729 (a and ab), OPUS

Telephony features

Make a call over any line
Receive a call over any line
Auto-answer
Barge call (shared line)
Redial
Do not disturb
Anonymous call & anonymous call rejection
Caller ID
Three-way conference
Attended & blind transfer
Call swap (to/from)
Call transfer
Call forwarding
Call waiting
Call park, hold & resume
Call return
Shared line / multi-line
Key lock
Emergency call
Narrowband / wideband codecs
DTMF dialing
Distinctive ringing
Ringtone selection
Ringer and receiver volume control
Phonebook search, import, export
Call history (up to 50 entries)
Local phonebook
Remote phonebook / Lightweight Directory Access Protocol (LDAP)
Cisco BroadWorks ® Directory
Speed dial
Voicemail
Message waiting indicator
Full duplex speakerphone
SRTP
HTTPS
Support for provisioning / upgrade

Network features

Cisco 110 IP DECT Base Station:

MAC address (IEEE 802.3)
SIP protocol support (RFC 3261 and companion RFCs)
IPv4 (RFC 791)
DNS: A record (RFC 1706), SRV record (RFC 2782)
Dynamic Host Configuration Protocol (DHCP) (RFC 2131)
Simple Network Time Protocol (SNTP) (RFC 2030)
Network Address Translation (NAT) traversal, serial tunnel (STUN)
User Datagram Protocol (UDP) / Transmission Control Protocol (TCP)
Link Layer Discovery Protocol (LLDP)

Security features

Cisco 6823 IP DECT Handset:

CAT-iq 2.1 security support

Cisco 110 IP DECT Base Station:

Certificates
Transport Layer Security (TLS)
Media encryption via Secure Real-Time Transport Protocol (SRTP)
Encrypted configuration files
Digest authentication
Password-protect handset
HTTPs secure provisioning
Secure call

Size (H x W x D)

Cisco 6823 IP DECT Handset:

117 mm x 46 mm x 20 mm (4.6 in x 1.8 in x 0.78 in)

Cisco 110 IP DECT Base Station:

121 mm x 121 mm x 31 mm (4.75 in x 4.75 in x 1.2 in )

Weight

Cisco 6823 IP DECT Handset:

86 g (3 oz)

Cisco 110 IP DECT Base Station:

167g (6 oz)

Incl. foot stand:

231g (8 oz)

User interface

Cisco 6823 IP DECT Handset:

1.7-in (4.3 cm) 128 x 160-pixels, 64K TFT display

The Cisco 6823 IP DECT Phone has the following keys:

28 total keys
0-9, # and * keys
3 soft keys
Five-way navigation and select
Answer and end call keys
Volume up and down keys
Mute key
Speakerphone key
Menu key

Cisco applications

Cisco Webex Calling
Webex Calling Carrier
Cisco BroadWorks

3rd party applications

Astersik
Metaswitch

Language support: Croatian, Czech, Danish, Dutch, English, French, German, Hungarian, Italian, Norwegian, Polish, Portuguese, Serbian, Spanish, Slovak, Swedish, Slovenian, Turkish

Power

Cisco 6823 IP DECT Handset:

Battery type: rechargeable Lithium Ion
Cradle charging time: 6 hours
Talk time: 17 hours (NB), 12 hours (WB)
Idle time: 200 hours
Adaptor plugs: E.U., U.S., Australia, U.K. (other countries available)
5V/2A, Type USB-A for power and additional power adapter for charging the handset. Interoperable optional AC-to-DC country-specific power supplies (such as the CP-6825-PWR-NA= for North America)

Cisco 110 IP DECT Base Station:

Internal Single Port - 10/100 BASE-T IEEE 802.3
Power over Ethernet (PoE) - minimum IEEE 802.3: Power class 2 (3.84 – 6.49W)

Compliance

Cisco 6823 IP DECT Handset:

CE Markings per directives 2014/30/EU and 2014/35/EU

Safety:

IEC60950-1:2005 (2nd Edition); AM1:2009 (CE, U.S. and Canada)
EN60950-1:2006/ A1:2010 + A11:2009 +A1 2010 +A12: 2011 +A2: 2013 (Australia and New Zealand)
CB Certificate
UL 62368-1 (U.S., Canada) & UL 60950-1 (U.S., Canada)
EU EMC EN301489-1 V2.2.0, EN 301489-6 V2.2.0, EN 301 489-3 v2.1.1 and EN 301 489-17 v3.2.0 (CE)
EU SAR EN/IEC 61109-1/-2 including EN50360: A1 2010, EN 50385: 2002 (CE)
EU RF EN301406 V2.2.2, EN 300 328 v2.1.1; EN 301 893 v2.1.1 and EN 300 440 v2.1.1 (CE)
AU EMC (CISPR 32), AU Safety AS/NZS 60950-1:2011 & AU SAR EN/IEC 62209-1 (same as EU)
US FCC Part 15D, US FCC ID certificate & US SAR OET 65 IEEE 1528
CA ICES-003 Issue 5:2012 & CA RSS-213 Issue 2:2015
CA IC certificate
CA RSS-102 (SAR)
CA IC REL registration

EMC – Emissions
