Importante
MPP Version - Non compatibile con Cisco Unified Communications Manager (CUCM).

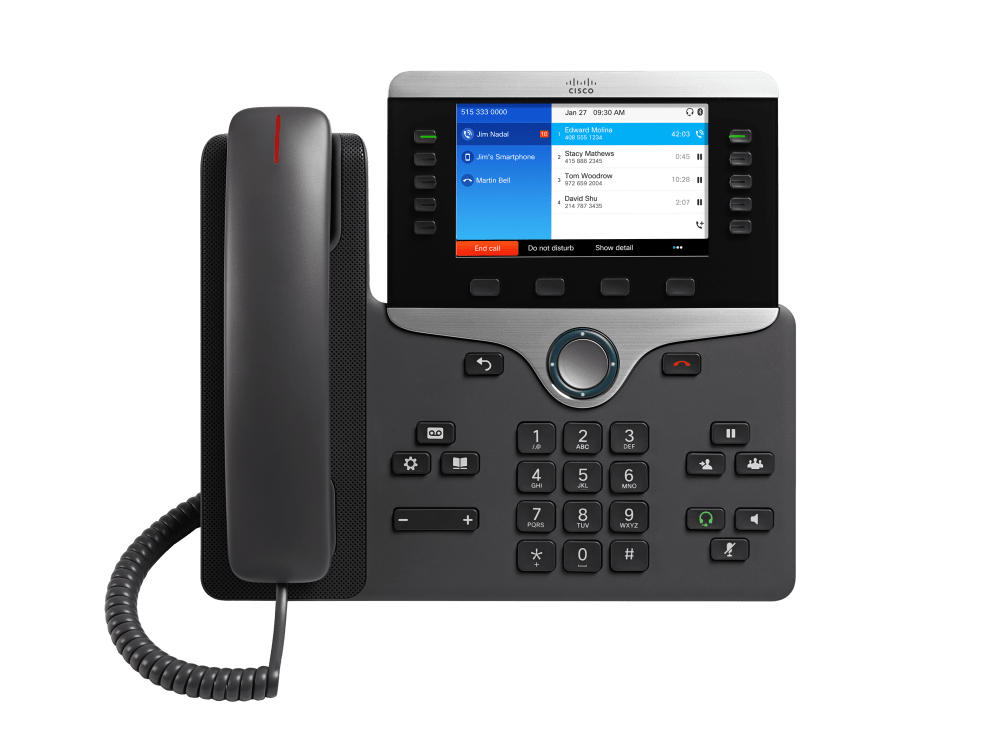

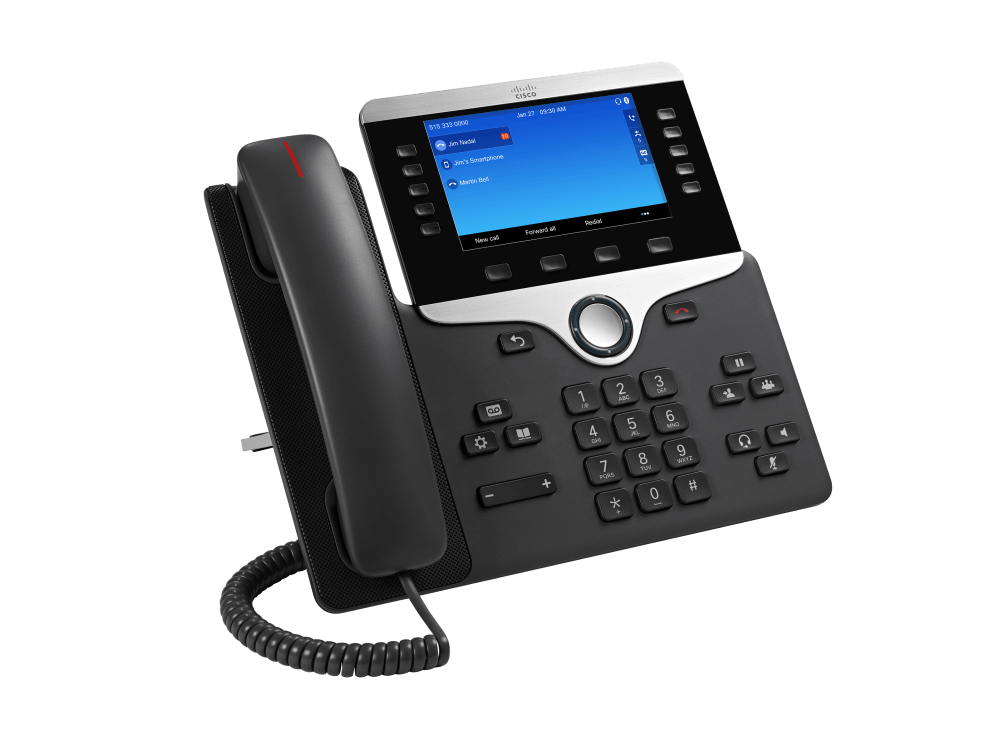

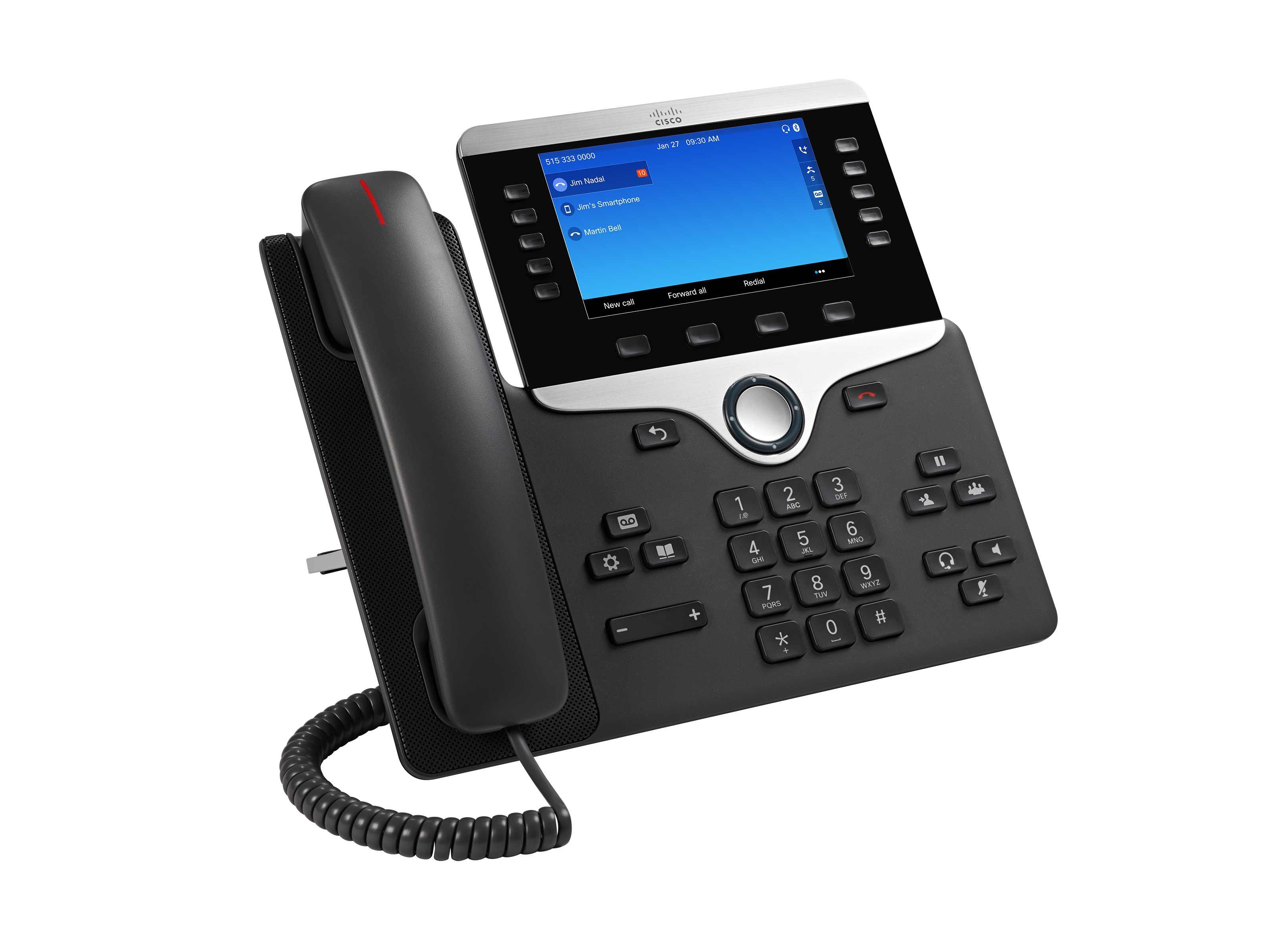

Il telefono Cisco IP 8851 è un endpoint di collaborazione business-class che combina comunicazioni voice over IP ad alta fedeltà, affidabili, sicure e scalabili con Cisco Intelligent Proximity per l’integrazione telefonica per i dispositivi mobili personali per supportare dalle piccole alle grandi imprese.

Funzionalità principali:

offre un display panoramico a colori ad alta risoluzione da 5” (800x480) VGA retroilluminato. Il supporto nella lingua desiderata, inclusa la modalità di scrittura su schermo da destra a sinistra, soddisfa le necessità degli utenti globali.
Audio a banda larga full-duplex di alta qualità e cancellazione dell’eco superiore per una chiarezza eccezionale durante la comunicazione.
Composizione semplificata e dettagli di stato ampliati con il modulo di espansione tasti Cisco IP Phone 8800 opzionale
Scelta di cuffie cablate, USB e Bluetooth dai partner terzi rivenditori di Cisco.

Ulteriori informazioni
Broschure
Datasheet

Technical details

Full lines supported: 10 lines (SIP registrations)

Audio features

G.711 a-law and mu-law, G.722, G.729a/b, Internet Low Bitrate Codec (iLBC), and Internet Speech Audio Codec (iSAC), G.722.1, G.772.2, OPUS
Flexibility in placing and receiving calls with hands free thanks to a full-duplex speakerphone

Automatic Gain Control
Comfort Noise Generation
Silence Suppression/Voice Activity Detection
Acoustic Echo Cancellation (AEC)
Dynamic Noise Reduction

Telephony features

+ Dialing
Abbreviated dialing
Adjustable ring tones and volume levels
Adjustable display brightness
Agent greeting
Auto-answer
Auto-detection of headset
cBarge
Busy Lamp Field (BLF), BLF Pickup & speed dial
Callback
Call forward & call forward notification
Call filter & history lists
Hold, park & pickup call
Call timer
Call waiting
Call chaperone
Caller ID
Corporate directory
Conference, including traditional Join feature
Cross Cluster Extension Mobility (EMCC)
Direct transfer
Extension mobility
Fast-dial service
Forced access codes and client matter codes
Group call pickup
Intercom
Immediate divert
Malicious-caller ID
Message-waiting indicator (MWI)
Meet-me conference
Mobility
Music on hold (MoH)
Mute
Network profiles (automatic)
On- and off-network distinctive ringing
Personal directory
Predialing before sending
Privacy
Private Line Automated Ringdown (PLAR)
Redial
Ring tone per line appearance
Service Uniform Resource Locator (URL)
Shared line
Silent monitoring and recording
Speed dial
Time and date display
Transfer
Uniform Resource Identifier (URI) dialing
Visual voice mail
Voice mail
Whisper coaching

Network features

Session Initiation Protocol (SIP) for signaling
Session Description Protocol (SDP)
IPv4 and IPv6
User Datagram Protocol (UDP) (used only for Real-Time Transport Protocol [RTP] streams)
Dynamic Host Configuration Protocol (DHCP) client or static configuration
Gratuitous Address Resolution Protocol (GARP)
Domain Name System (DNS)
Trivial File Transfer Protocol (TFTP)
Secure Hypertext Transfer Protocol (HTTPS)
VLAN
Real-Time Transport Protocol (RTP)
Real-Time Control Protocol (RTCP)
Cisco Peer-to-Peer Distribution Protocol (PPDP)
Cisco Discovery Protocol
LLDP (including LLDP-MED)
Switch speed auto-negotiation

Security features

Secure boot
Secure credential storage
Device authentication
Configuration file authentication and encryption
Image authentication
Random bit generation
Hardware cryptographic acceleration
Certificate Authority Proxy Function (CAPF)
Manufacturer-Installed Certificates (MIC)
Locally Significant Certificates (LSC)
Ethernet 802.1x supplicant options: Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST) and Extensible Authentication Protocol-Transport Layer Security (EAP-TLS)
Signaling authentication and encryption using TLS
Media authentication and encryption using SRTP
HTTPS for client and server
Secure Shell (SSH) Protocol server
SSL-based VPN client

Size (H x W x D): 229,1 mm x 257,34 mm x 40 mm (9,02 Zoll x 10,13 Zoll x 1,57 Zoll)

Weight: 1,19 kg

User interface

An easy-to-use interface that provides a traditional telephony-like user experience
The 800 × 480, 24-bit color, 5-in. WVGA display provides scrollable access to calling features and text-based XML applications

The 8851 has the following keys:

Line keys
Soft keys
Back and release keys
Four-way navigation and select keys
Hold/Resume, Transfer, and Conference keys
Messaging, Application, and Directory keys
Standard keypad
Volume-control toggle key
Speakerphone, headset, and mute keys

Cisco applications

Cisco Unified Communications Manager:

8.5.1 (Non-Secured mode Only), 8.6.2, 9.1.2, 10.5.2, 11.0 and later

Cisco Unified Communications Manager Express (Unified CME):

10.0 and later through fast track

Cisco Business Edition 6000 (BE 6000):

8.6.2, 9.1.2, 10.5.2, 11.0 and later

Cisco Hosted Collaboration Solution (HCS):

8.6.2 and later (using supported UCM versions above)

Language support: Arabic, Bulgarian, Catalan, Chinese, Chinese, Croatian, Czech, Danish, Dutch, English, Estonian, French, Finnish, German, Greek, Hebrew, Hungarian, Italian, Japanese, Latvian, Lithuanian, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Slovak, Swedish, Serbian, Slovenian, Thai, Turkish

Power

IEEE Power over Ethernet class 3 for hardware version prior to V08, class 4 for hardware version V08 and above. In PoE class 3 case, one KEM can be attached and powered up through PoE together with the host 8851 phone, in PoE class 4 case, two KEMs can be attached and powered up through PoE together with the host 8851 phone.
The phone is compatible with both IEEE 802.3af and 802.3at switch blades and supports both Cisco Discovery Protocol and Link Layer Discovery Protocol - Power over Ethernet (LLDP-PoE).

Compliance

Regulatory compliance:

CE Markings per directives 2004/108/EC and 2006/95/EC

Safety:

UL 60950 Second Edition
CAN/CSA-C22.2 No. 60950 Second Edition
EN 60950 Second Edition (including A11 & A12)
IEC 60950 Second Edition (including A11 & A12)
AS/NZS 60950
GB4943
EMC - Emissions
47CFR Part 15 (CFR 47) Class B
AS/NZS CISPR22 Class B
CISPR22: 2005 w/Amendment 1: 2005 Class B
EN55022: 2006 w/Amendment 1: 2007 Class B
ICES003 Class B
VCCI Class B
EN61000-3-2 & EN61000-3-3
KN22 Class B

EMC - Immunity:

EN55024
CISPR24
EN60601-1-2
KN24
Armadillo Light

Telecom:

FCC Part 68 HAC
CS-03-HAC
AS/ACIF S004 & AS/ACIF S040
NZ PTC 220
Industry Standards: TIA 810 and TIA 920
Industry Standards: IEEE 802.3 Ethernet, IEEE 802.3af and 802.3at
Korea (RRA Public Notification 2010-36, Nov 01, 2010)
Korea (RRA Announce 2011-2, Feb 28, 2011)

Radio:

FCC Part 2.1093 (BT RF Exposure TR)RSS-102 (BT RF Exposure TR)
RSS-210
EN 300.328
EN50385 (BT RF Exposure TR)
EN 301-489-1 & EN 301-489-17
NCC LP0002
Korea (RRL No. 2006-128, RRL No. 2006-129)
Japan Bluetooth GFSK/EDR

Cisco 8851
