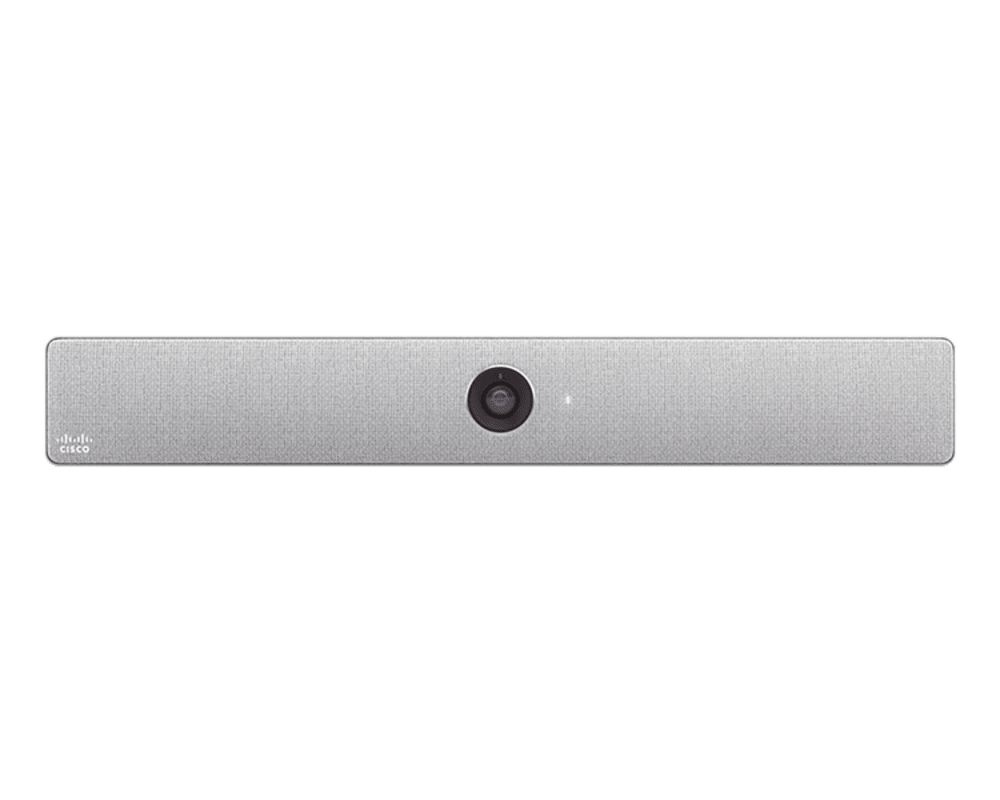

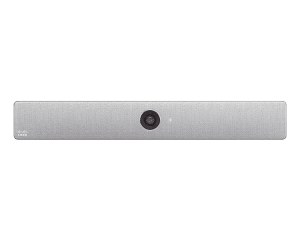

Cisco Room Kit

CS-KIT-K9

Cisco Room Kit consente riprese video in spazi di riunione di medie dimensioni semplicemente aggiungendo uno o due schermi.

Dettagli del prodotto
Out of stock
Prezzo Opzioni
Tutti i prezzi, IVA esclusa
Out of stock
Cisco Room Kit
  / Mese
Pagamento mensile per un minimo di 24 mesi Pagamento unico

Cisco Room Kit è una soluzione potente di collaborazione che si integra con i display a schermo piatto per portare più intelligenza e usabilità alle tue sale riunioni di piccole e medie dimensioni – sia che siano registrate in sede o su cloud Webex.

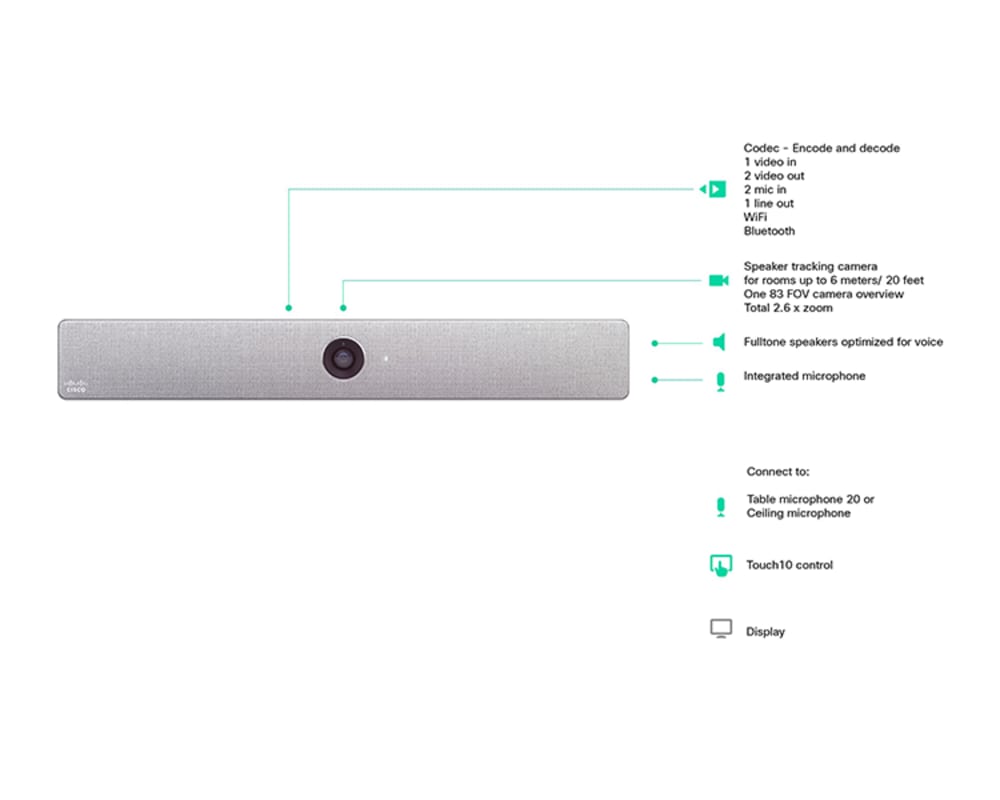

Funzionalità principali
  • Per sale riunioni che ospitano fino a sette persone
  • Telecamera e codec in un dispositivo integrato nel tuo schermo
  • Altoparlanti e microfoni integrati
  • RoomOS, controller Touch 10

Technical details

Video features
Camera Overview:
  • 5K UltraHD camera
  • Supports up to 60 fps (max 30 fps with speaker tracking and best overview enabled)
  • 15.1 MP image sensor (5184 x 2916 pixels)
  • 1/1.7 CMOS
  • 3x zoom
  • f/2.0 aperture
  • 83° horizontal field of view; 51.5° vertical field of view
  • Auto framing (audio + face detect)
  • Auto focus, brightness, and white balance
  • Focus distance 1 m to infinity
Video standards:
  • H.264, H.265
Video inputs:
  • One HDMI input supports formats up to maximum 4K (3840 x 2160) at 30 fps including HD1080p60
  • Consumer Electronics Control (CEC) 2.0
Video outputs:
  • Two HDMI outputs support formats up to 3840 x 2160p60 (4Kp60)
  • Live video resolutions (encode and decode) up to 1920 x 1080p30 and p60 (HD1080p)
  • Consumer Electronics Control (CEC) 2.0
Audio features
Audio standards:
  • G.711, G.722, G.722.1, G.729, AAC-LD, and Opus
Audio features:
  • High-quality 20 kHz audio
  • Prepared for subwoofer (line out)
  • Prepared for inductive loop (line out)
  • Automatic Gain Control (AGC)
  • Automatic noise reduction
  • Active lip synchronization
Audio inputs:
  • Two microphones, 4-pin mini-jack
  • One audio in from HDMI
  • Internal microphone
Speakers (integrated):
  • High-quality speakers: five speakers in balanced configuration
  • Frequency response 70 Hz to 20 kHz
  • Amplifier power: 24W
  • Max output level SPL 86 dB
Audio outputs (external)
  • 1 line out mini-jack (stereo)
Network features
  • DNS lookup for service configuration
  • Differentiated services (Quality of Service [QoS])
  • IP-adaptive bandwidth management (including flow control)
  • Automatic gatekeeper discovery
  • Dynamic playout and lip-sync buffering
  • H.245 Dual-Tone Multifrequency (DTMF) tones in H.323
  • RFC 4733 DTMF tones in SIP
  • Date and time support using Network Time Protocol (NTP)
  • Media adaptation and resilience
  • Uniform Resource Identifier (URI) dialing
  • Dynamic Host Configuration Protocol (DHCP)
  • 802.1X network authentication
  • 802.1Q Virtual LAN
  • 802.1p (QoS and Class of Service [CoS])
Security features
  • Management using HTTPS and SSH
  • IP administration password
  • Menu administration password
  • Disable IP services
  • Network settings protection
Size (H x W x D)
10.6 cm x 70.0 cm x 8.8 cm (3.5 in x 27.5 in x 2.9 in)
Weight
3.2 kg (7 lb)
Software and user interface
Software compatibility:
  • Cisco Collaboration Endpoint Software Version 9.14.5 or later, and Webex Room OS

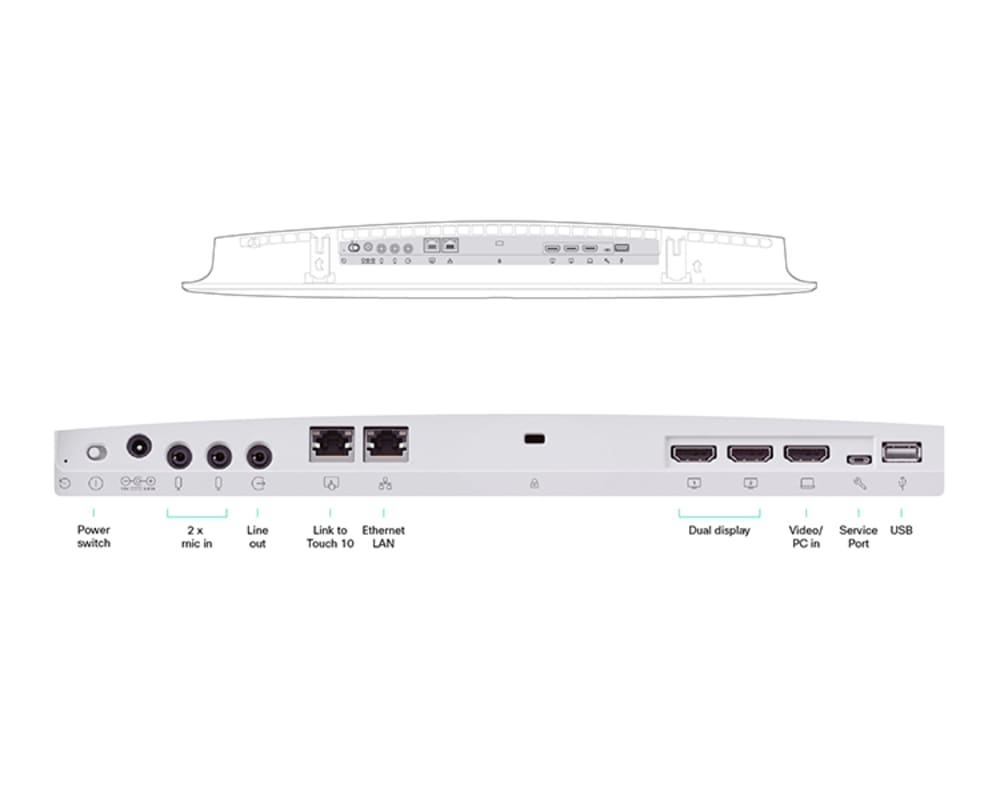

Network interfaces:
  • One Ethernet (RJ-45) 10/100/1000 for LAN
  • One Ethernet (RJ-45) for Cisco Touch 10 direct pairing
  • Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz, 2x2 MIMO
  • Note: Due to compliance regulations, it is required that 802.11d is enabled in the access point for the product to operate properly within 5725 MHz—5875 MHz. Using a Wifi connection is a flexible option, however an Ethernet connection is always preferred for high performance.
Other interfaces:
  • USB 2.0 port, μUSB, factory reset pinhole
Cisco applications
Cisco Unified Communications Manager (CUCM)
  • Native registration with CUCM
  • Requires CUCM Version 10.5.2 or later with device pack for Room Kit
Cisco Expressway
  • Native registration with Expressway
Cisco Webex Service
3rd party applications
Third-party H.323 Gatekeepers and standards-based SIP proxies
Power
  • 100 to 240 VAC, 50/60 Hz, 12V DC input
  • Average 20W, peak 70W
Compliance
  • Directive 2014/35/EU (Low-Voltage Directive)
  • Directive 2014/30/EU (EMC Directive)—Class A
  • Directive 2014/53/EU (Radio Equipment Directive)
  • Directive 2011/65/EU (RoHS)
  • Directive 2002/96/EC (WEEE)
  • NRTL approved (Product Safety)
  • FCC CFR 47 Part 15B (EMC)—Class A
  • FCC Listed (Radio Equipment)
