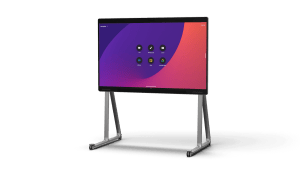

Progettato per spazi huddle e piccoli, Cisco Board Pro 75 è und dispositivo di collaborazione all-in-one.

Presentazione wireless

Condividi una presentazione wireless, locale o da remoto, da un pc portatile (HDMI disponibile); o da un’app Webex.

Lavagna digitale

Crea o modifica il contenuto di una lavagna in uno spazio Webex App o invia le lavagne come allegato e-mail direttamente dal pannello.
Collabora in tempo reale con partecipanti da remoto su altre lavagne Webex o con partecipanti che utilizzano l’app Webex.
Collegati alle funzionalità della lavagna su qualsiasi app WebexFai annotazioni su contenuti condivisi

Flusso di lavoro continuo

La registrazione su cloud consente di memorizzare tutto quello che viene creato sulla lavagna Webex direttamente e in modo sicuro nel cloud e di associarlo a uno spazio virtuale dell’app Webex.
Si può riprendere da dove si è lasciato sulla lavagna Webex quando si lascia la sala fisica; il lavoro può continuare da un posto o da un dispositivo diverso come un’altra lavagna o app Webex.
Fornisce la crittografia end-to-end, in modo che le comunicazioni e i contenuti siano sicuri.

Per utilizzare il dispositivo sono necessari la licenza/l’abbonamento webex separati.

Technical details

Full lines supported: 5-way embedded SIP/H.323 conferencing capability with MultiSite option

Video features

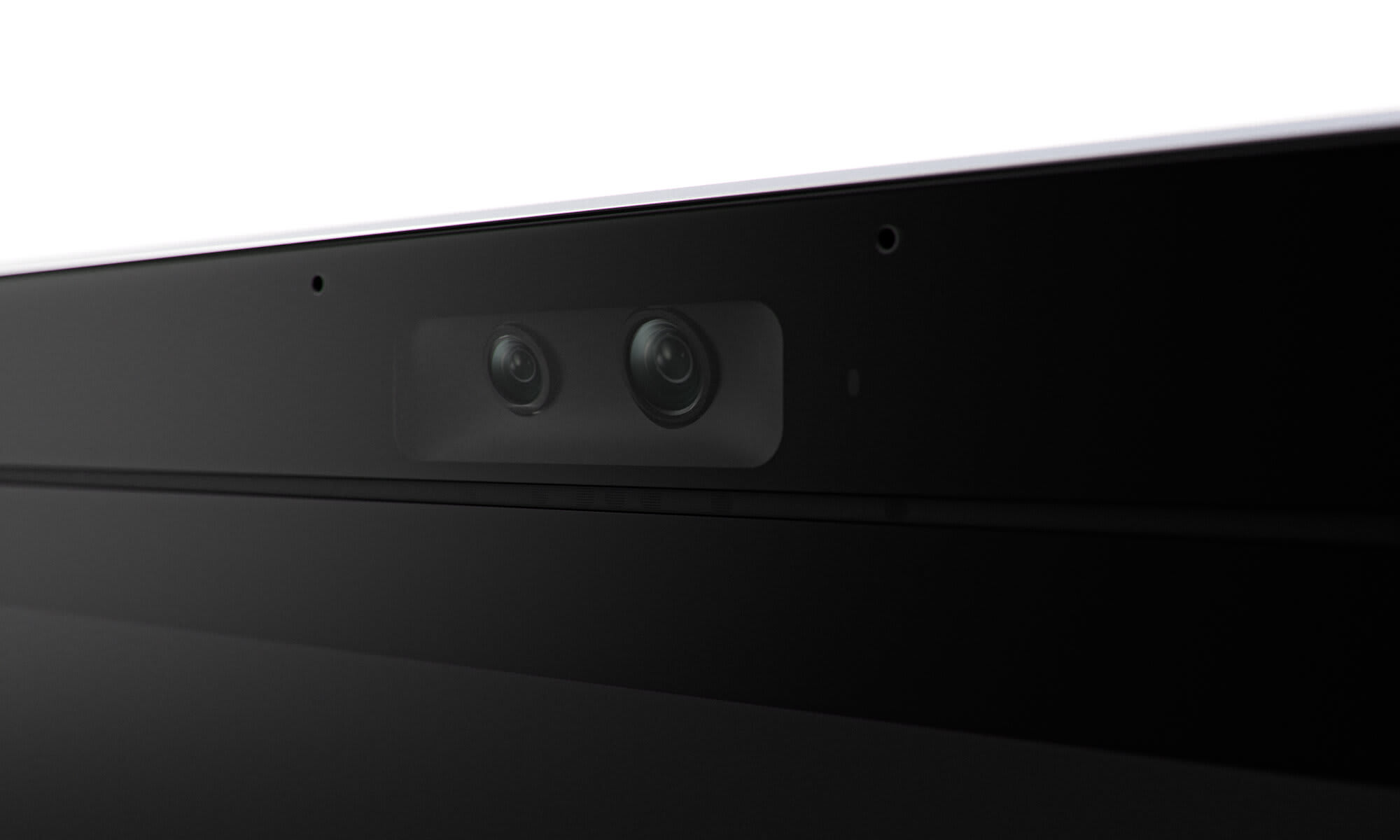

Cameras:

Dual 4K, 12PM camera
Automatic best view and speaker tracking
Automatic brightness and white balance
5x manual zoom
3x digital zoom via SpeakerTrack

Main camera:

85° horizontal field of view, 64° vertical field of view
Dual f/1.7-f/2.4 aperture
12 MP image sensor, 30 fps
1/2.3" CMOS, PDAF technology
Ultra-wide camera:
120° horizontal field of view, 90° vertical field of view
f/2.0 aperture
12 MP image sensor, 30 fps
1/2.3" CMOS

Video standards:

H.264 AVC, H.265 HEVC, H.263

Performance features:

Native screen resolution up to 4K p60
Main video resolution up to 1080p30
Content sharing resolution up to 4Kp15
H.323/SIP/Webex up to 6 Mbps point to point
Full duplex audio with high-quality stereo sound
Full Application Programming Interfaces (APIs)
Cisco Media Assure packet loss protection

Supported resolution:

Screen: 4Kp60
Main video: 1080p30
Content sharing: 4Kp15

Video inputs:

USB-C DisplayPort Alternate Mode up to 3840 x 2160p60 (4Kp60)
HDMI 2.0 type A input supports formats up to 3840 x 2160p30 (4kp30)
HDCP

Video outputs:

HDMI 2.0 type A up to 3840 x 2160p60 (4kp60) *

Audio features

Audio standards:

G.711, G.722, G.722.1, G.729, AAC-LD, and Opus

Audio features:

Acoustic Echo Cancellation (AEC)
Active Lip Synchronization
AI-Powered Noise Removal
Automatic Gain Control (AGC)
Beamforming Microphones
De-Reverberation
Full Duplex
Full-Band Audio
Noise Reduction
Self-Hear
Spatial Audio
Ultrasound Technology

Audio inputs:

2 analog microphone inputs
1 HDMI input
1 USB-C
1 USB-A
Bluetooth ® - Not available on Non Radio Version

Audio outputs:

1 analog line out (stereo 3.5mm minijack)
1 HDMI output *
1 USB-C output
1 USB-A output
Bluetooth ® - Not available on Non Radio Version **

Network features

1 x Ethernet (RJ-45) 100/1000 Mbps (external network)
1 x Ethernet (RJ-45) 100/1000 Mbps PoE port enabled (devices control)
Wi-Fi 802.11a/b/g/n/ac (2.4 and 5 GHz) - not available in non-radio versions
Note: Due to compliance regulations, it is required to enable 802.11d in the access point for the product to operate properly within 5725 MHz – 5875 MHz while helping to achieve better performance on other frequencies at the same time. A Wi-Fi connection can be used as a flexible option. Ethernet connection is always preferred for high performance.
IPv4 Dynamic Host Configuration Protocol (DHCP) / static
IPv6 (both static and stateless address auto-configuration)
Network Time Protocol (NTP)
HTTP(S) proxy support (for signaling, not media)
Inspecting TLS proxy supported
Cisco Discovery Protocol (CDP)
802.1X network authentication (passphrase or X.509 client certificate)
802.1Q virtual LAN
802.1p (Quality of Service [QoS] and Class of Service [CoS])

Security features

Secure management using HTTPS and SSH protocols
Password protection for IP administration
End-to-end encryption for calls and meetings on Webex
Standards-based media encryption on all back-ends (Secure Real-time Transport Protocol [SRTP], using AES-128-GCM or AES-256-GCM)
Password protection to access administration available on Room Navigator controller
Option to disable IP services
Network settings protection

Cables included

Ethernet cable (16.4 ft / 5 m)
Power cord according to country specified in order

Size (H x W x D)

Main unit (spare)
Package size:

1974 mm x 242 mm x 1303 mm (77.7 in x 9.5 in x 51.3 in)

Wall-mount kit
Package size:

Wall Mount Kit 75”: 1658 mm x 223 mm x117mm (65.28 in x 8.78 in x 4.61 in)
Spare Wall Mount Kit 75”: 1658 mm x 904 mm x261mm (65.28 in x 35.59 in x 10.28 in )

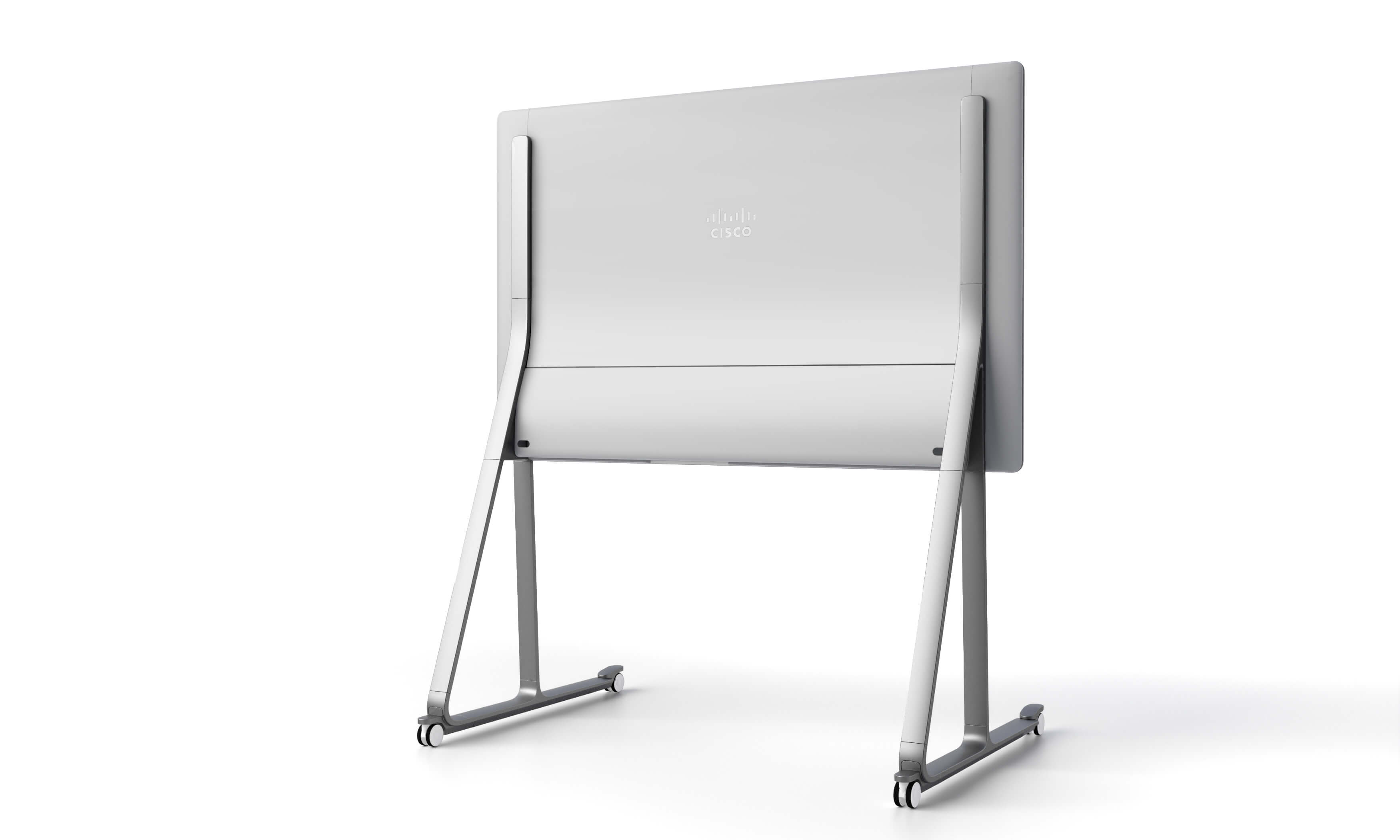

Floor stand
Package size:

Floor Stand Kit 75”: 1505 mm x 1064 mm x199mm (59.25 in x 4.89 in x 7.83 in)
Spare Floor Stand Kit 75”: 1505 mm x 1064 mm x 343mm (59.25 in x 41.89 in x 13.5 in)

Wheel upgrade kit
Package size:

858 mm x 328 mm x 99 mm (33.78 in x 12.91 in x 3.9 in)

Weight

Board only: 72kg
Floor stand: 32.5 kg
Wheel upgrade kit: 5.5 kg
Wall mount: 5.8 kg

Software and user interface

Software compatibility

RoomOS 10.10 or later for cloud registered devices
RoomOS 10.11 or later for on-premises deployments

User interface:

In-cell projected capacitive touch
Optically bonded cover glass
Multi-touch

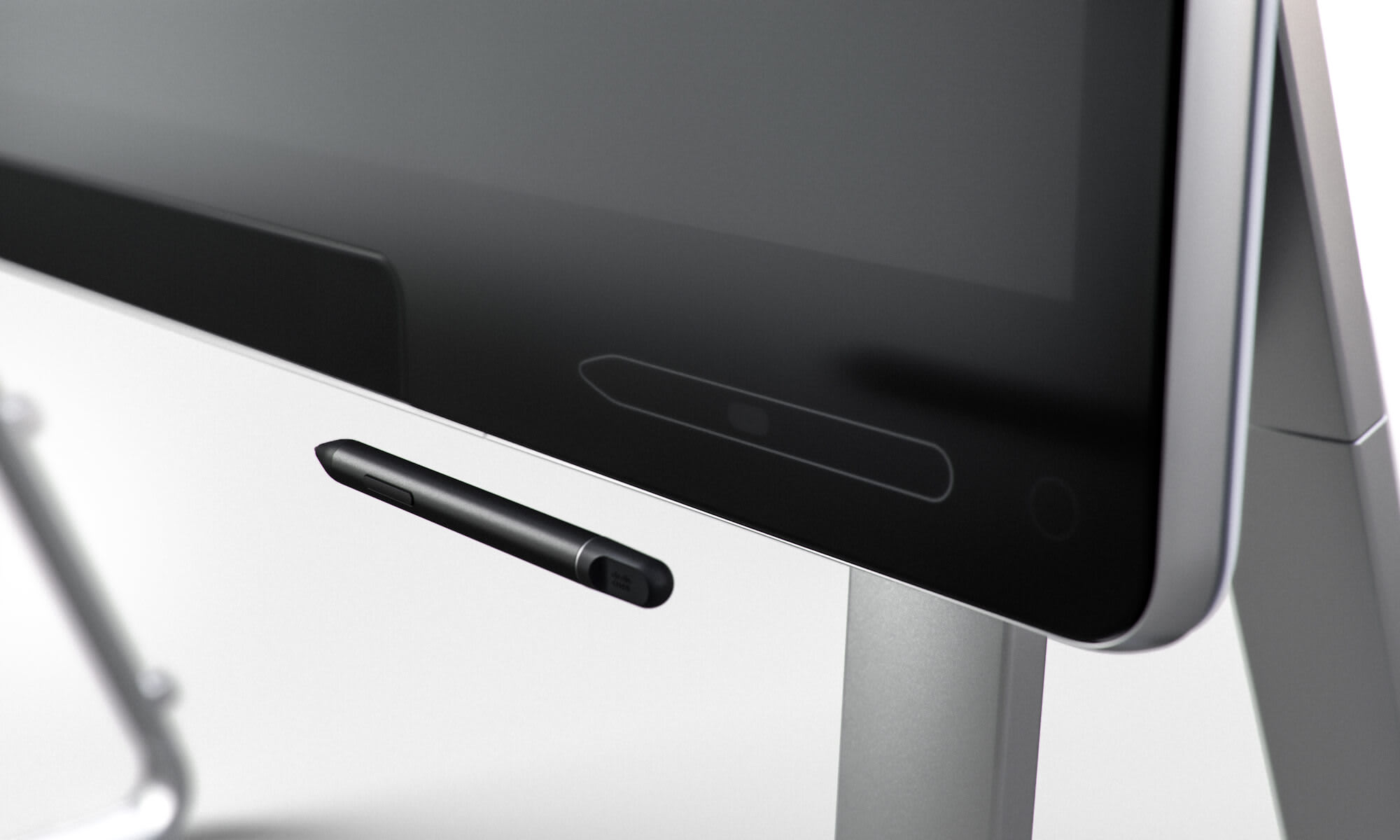

Active stylus-enabled
Stylus-finger differentiation

Cisco applications

Activation and connection to Webex
Native registration with Cisco Unified Communications Manager (UCM) or Cisco Expressway™ (from version 10.5.2 or later with device pack)

Language support: Arabic, Czech, Danish, German, English, Catalonian, Spanish, Finnish, French, Canadian French, Hebrew, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish, Chinese

Operating system: RoomOS

Power

Rated maximum power:

4.5-3.5A 100-240V 50/60Hz, Class I

Networked standby power:

6.5W*

Standby power:

*Availability with future software release.

Compliance

Directive 2014/30/EU (EMC Directive) - Class A
Directive 2014/53/EU (Radio Equipment Directive)
Directive 2014/35/EU (Low Voltage Directive)
Directive 2011/65/EU (RoHS)
Directive 2012/19/EU (WEEE)
NRTL approved (product safety)
FCC listed (radio equipment)
FCC CFR 47 Part 15B (EMC) - Class A
FCC CFR 47 Part 15C (RF)
FCC CFR 47 Part 15E (RF)
