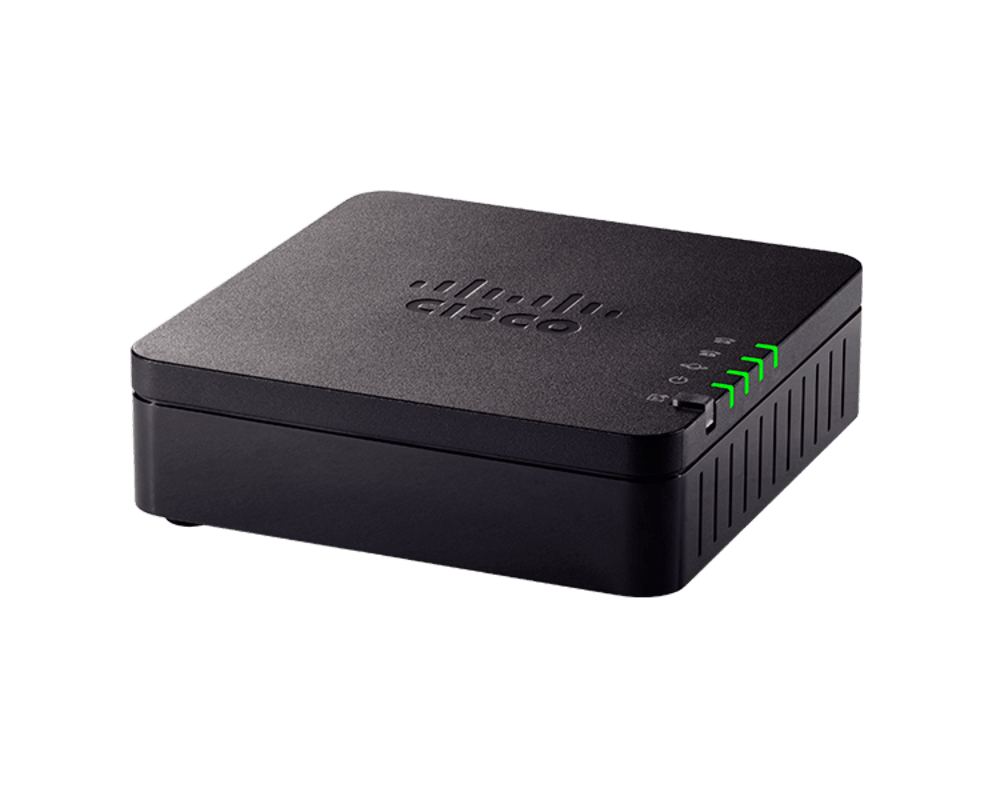

L'adaptateur téléphonique analogique multiplateforme Cisco ATA 192 transforme les appareils de communication traditionnels (téléphone, télécopieur et radiomessagerie) en appareils IP pour une meilleure productivité. Les clients peuvent profiter des applications de téléphonie IP en connectant leurs appareils analogiques aux adaptateurs téléphoniques analogiques Cisco.

L'ATA 192 est la solution privilégiée pour répondre aux besoins des clients qui se connectent aux réseaux d'entreprise, aux petites entreprises ou aux communications unifiées en tant que service depuis le cloud. Il dispose de deux ports FXS standard, qui peuvent être configurés indépendamment comme deux enregistrements SIP (Session Initiation Protocol). Il dispose également de deux ports 100BASE-T avec un routeur haute performance intégré pour étendre la connectivité du réseau local.

L'ATA 192 est conçu pour fonctionner avec des systèmes de contrôle d'appel tiers et ne fonctionne pas avec les systèmes de contrôle d'appel Cisco.

Qualité vocale
Offre une qualité vocale supérieure grâce à un système de traitement avancé, une annulation d'écho haute performance, une détection de l'activité vocale et une génération de bruit de confort.

Sécurité
La série ATA 190 prend en charge le cryptage le plus récent avec Transport Layer Security (TLS), Secure Hash Algorithm (SHA-2) et les nouvelles suites de chiffrement Secure Real-time Protocol (sRTP).

2 profils SIP via 2 ports FXS
Routeur
Prêt pour IPv6
Passage de fax G.711 et FoIP T.38

Détails techniques

Full lines supported: Two standard FXS ports can be configurated as 2 lines (SIP registrations)

Audio features

Codec: G.711 a-law, G.711 μ-law, G.729a, G.729ab, G.726
Codec name assignment
Full-duplex audio
Echo cancellation
Voice activity detection
Silence suppression
Configurable silence threshold
Comfort noise generation
Adaptive jitter buffer
Frame loss concealment
Adjustable audio frames per packet
Call progress tone generation
Impedance and gain adjustment
Dynamic audio payload

Telephony features

Anonymous call and call blocking
Call forwarding: No answer, busy, and all
Call hold and resume
Caller ID blocking
Caller ID generation (name and number): Bellcore, BT, and European Telecommunications Standards Institute (ETSI)
Call pickup and group pickup
Call transfer, call return, and call back on busy
Call waiting
Configurable ring frequency, tones and cadences
Disconnect tone
Distinctive ringing: Calling and called number
Do not disturb
Forced Authorization Code (FAC)/Client Matter Code (CMC)
Flash hook timer
Hook flash event signaling
Hotline and warm line calling
Message Waiting Indicator (MWI) tones
Music on hold
Off-hook warning tone
Polarity control
Redial
Selective and anonymous call rejection
SIP redundancy
Speed dial
Streaming audio server: Up to 4 sessions
Three-way conference calling with local mixing
Tip and ring voltage adjustment setting
Visual Messaging Waiting Indicator (VMWI) using frequency shift keying (FSK)
Network Address Translation (NAT)
Session Traversal Utilities for NAT (STUN)

Fax

Real-time fax over IP via T.38 fax relay (Group 3)
Fax pass-through via G.711 (Group 3)
Fax tone detection and pass-through
Automatic negotiation on transmission rate

Network features

MAC addresse
IPv4 only
IPv6 only
IPv4/IPv6 dual stack
Session Initiation Protocol (SIP)
Transmission Control Protocol (TCP)
User Datagram Protocol (UDP)
Real Time Protocol (RTP)
Real Time Control Protocol (RTCP)
HTTP
HTTPS
Trivial File Transfer Protocol (TFTP)
Address Resolution Protocol (ARP)
DNS A/AAAA and SRV records
Dynamic Host Configuration Protocol (DHCP) client
Internet Control Message Protocol (ICMP)
Simple Network Time Protocol (SNTP)
Cisco Discovery Protocol
Link Layer Discovery Protocol (LLDP)
Point-to-Point Protocol over Ethernet (PPPoE)

Security features

Password-protected system reset to factory default
Password-protected administrator and user access authority
Provisioning, configuration, and authentication
HTTPS with factory-installed client certificate
Advanced Encryption Standard (AES) encryption
SIP over Transport Layer Security (TLS1.1 and TLS1.2)
Secure (encrypted) calling using Secure RTP (sRTP)
Encrypted configuration files
Image authentication
Secure boot
Secure Shell (SSH)

Routing features

Routing and bridging
Static and dynamic address assignment
Network Address Translation (NAT)
DHCP client reservation
MAC address cloning - Port forwarding
DMZ mode
VPN pass-through: IP Security (IPsec) Encapsulating Security Payload (ESP), Point-to-Point Tunneling Protocol (PPTP), Layer 2 Tunneling Protocol (L2TP)

Componets: Cisco ATA 192

Size (H x W x D): 100 mm × 100 mm × 28 mm (3.9 in x 3.9 in x 1.1 in)

Weight: 132.1 g (4.7 oz)

Software and user interface

Interface: Two RJ-11 FXS ports, two 10/100 Mbps RJ-45 Ethernet ports
Button: Reset / Problem Reporting (PRT)
LED indicators: Power, Network, Phone 1, Phone 2, PRT Wall mountable

Subscriber Line Interface Circuit (SLIC):

Ring voltage: 40 to 90 Vpk configurable
Ring frequency accuracy: 1%
Ring waveform: Trapezoidal or sinusoidal
Maximum ringer load: 3 Ringer Equivalence Numbers (RENs)
On-hook voltage (tip and ring): -46 to -56V
Off-hook current: 25mA +/- 10%
Terminating impedance: 600 ohm resistive, 900 ohm resistive, or 220 ohm + 820 ohm
120 nF complex impedance
Frequency response: 300 to 3400 Hz
Return loss (600 ohm, 300 to 3400 Hz): up to 26 dB
Idle channel noise: <-65 dBm 0p
Longitudinal balance: 58 dB (typical)
Voice quality Mean Opinion Score (MOS): >4.0
Voice quality jitter: <150 ms
