Le Cisco Room Kit est une solution de collaboration performante qui s’intègre aux écrans plats pour apporter plus d’intelligence et de convivialité à vos salles de réunion de petite et moyenne taille, qu’elles soient enregistrées sur site ou sur le Cloud Webex.

Pour les salles de réunion pouvant accueillir jusqu’à 7 personnes

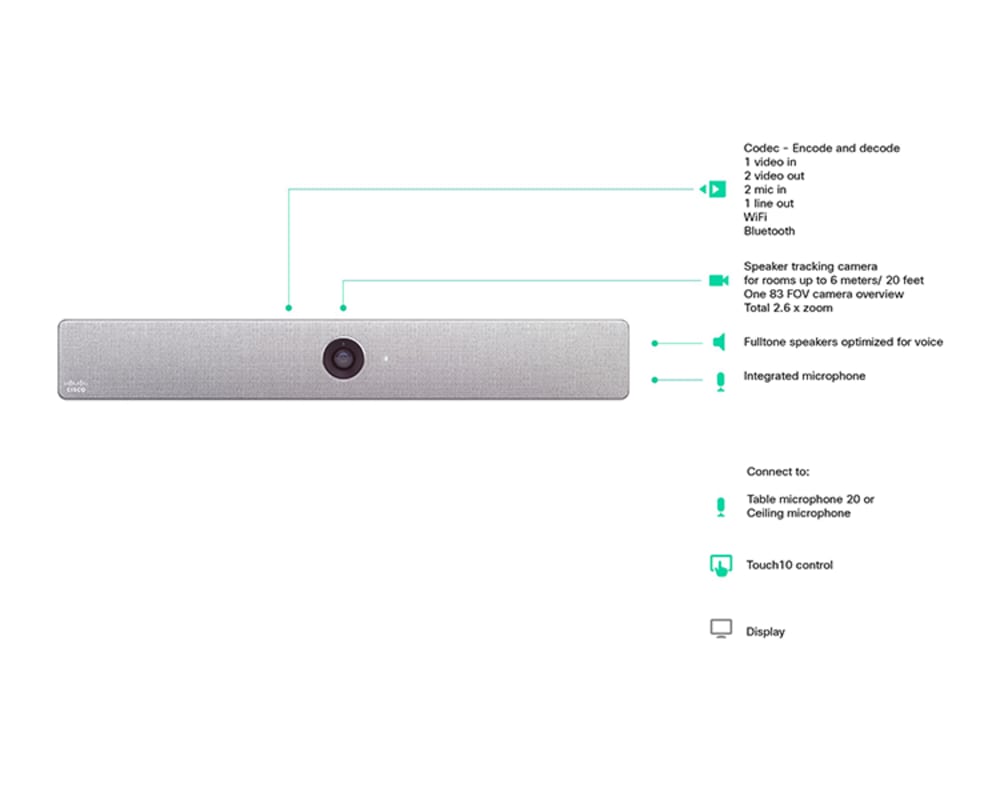

Caméra et codec regroupés dans un même équipement, intégré avec votre écran
Haut-parleurs et microphones intégrés
RoomOS, contrôleur Touch 10

Détails techniques

Video features

Camera Overview:

5K UltraHD camera
Supports up to 60 fps (max 30 fps with speaker tracking and best overview enabled)
15.1 MP image sensor (5184 x 2916 pixels)
1/1.7 CMOS
3x zoom
f/2.0 aperture
83° horizontal field of view; 51.5° vertical field of view
Auto framing (audio + face detect)
Auto focus, brightness, and white balance
Focus distance 1 m to infinity

Video standards:

H.264, H.265

Video inputs:

One HDMI input supports formats up to maximum 4K (3840 x 2160) at 30 fps including HD1080p60
Consumer Electronics Control (CEC) 2.0

Video outputs:

Two HDMI outputs support formats up to 3840 x 2160p60 (4Kp60)
Live video resolutions (encode and decode) up to 1920 x 1080p30 and p60 (HD1080p)
Consumer Electronics Control (CEC) 2.0

Audio features

Audio standards:

G.711, G.722, G.722.1, G.729, AAC-LD, and Opus

Audio features:

High-quality 20 kHz audio
Prepared for subwoofer (line out)
Prepared for inductive loop (line out)
Automatic Gain Control (AGC)
Automatic noise reduction
Active lip synchronization

Audio inputs:

Two microphones, 4-pin mini-jack
One audio in from HDMI
Internal microphone

Speakers (integrated):

High-quality speakers: five speakers in balanced configuration
Frequency response 70 Hz to 20 kHz
Amplifier power: 24W
Max output level SPL 86 dB

Audio outputs (external)

1 line out mini-jack (stereo)

Network features

DNS lookup for service configuration
Differentiated services (Quality of Service [QoS])
IP-adaptive bandwidth management (including flow control)
Automatic gatekeeper discovery
Dynamic playout and lip-sync buffering
H.245 Dual-Tone Multifrequency (DTMF) tones in H.323
RFC 4733 DTMF tones in SIP
Date and time support using Network Time Protocol (NTP)
Media adaptation and resilience
Uniform Resource Identifier (URI) dialing
Dynamic Host Configuration Protocol (DHCP)
802.1X network authentication
802.1Q Virtual LAN
802.1p (QoS and Class of Service [CoS])

Security features

Management using HTTPS and SSH
IP administration password
Menu administration password
Disable IP services
Network settings protection

Size (H x W x D): 10.6 cm x 70.0 cm x 8.8 cm (3.5 in x 27.5 in x 2.9 in)

Weight: 3.2 kg (7 lb)

Software and user interface

Software compatibility:

Cisco Collaboration Endpoint Software Version 9.14.5 or later, and Webex Room OS

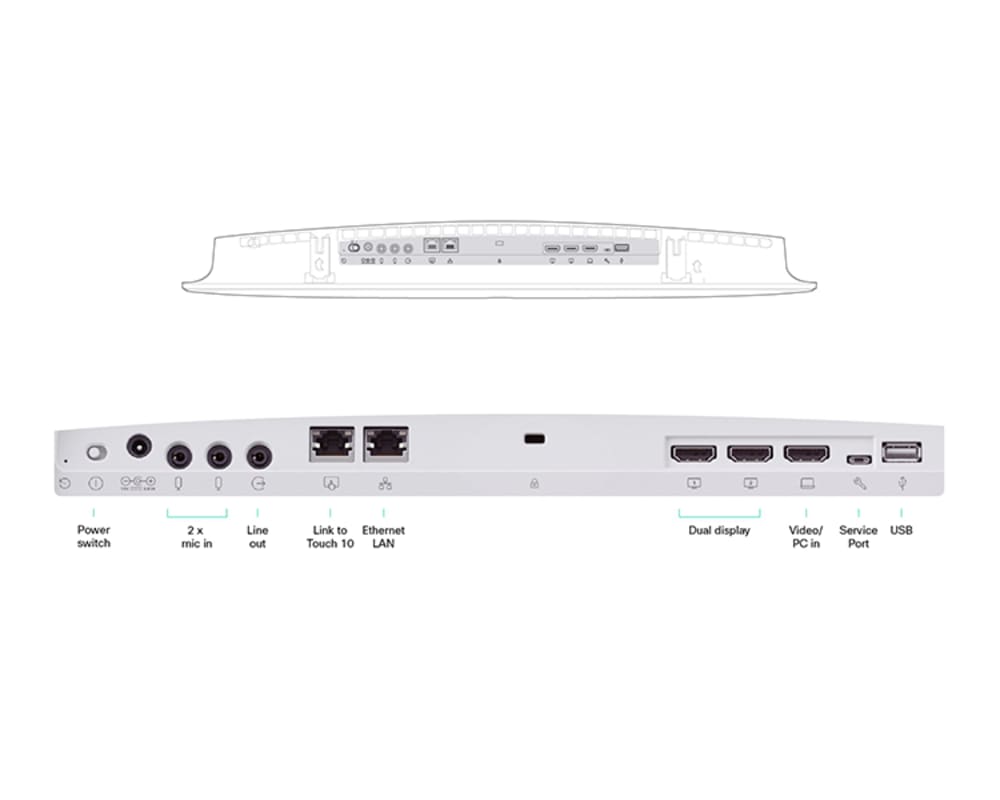

Network interfaces:

One Ethernet (RJ-45) 10/100/1000 for LAN
One Ethernet (RJ-45) for Cisco Touch 10 direct pairing
Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz, 2x2 MIMO
Note: Due to compliance regulations, it is required that 802.11d is enabled in the access point for the product to operate properly within 5725 MHz—5875 MHz. Using a Wifi connection is a flexible option, however an Ethernet connection is always preferred for high performance.

Other interfaces:
