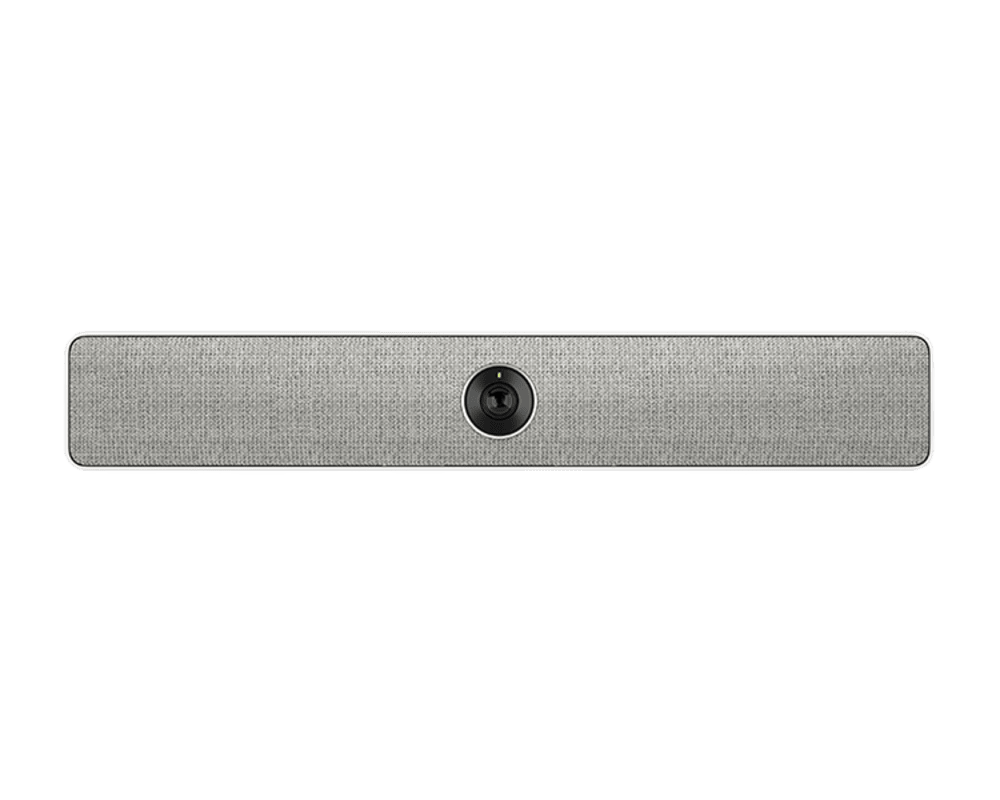

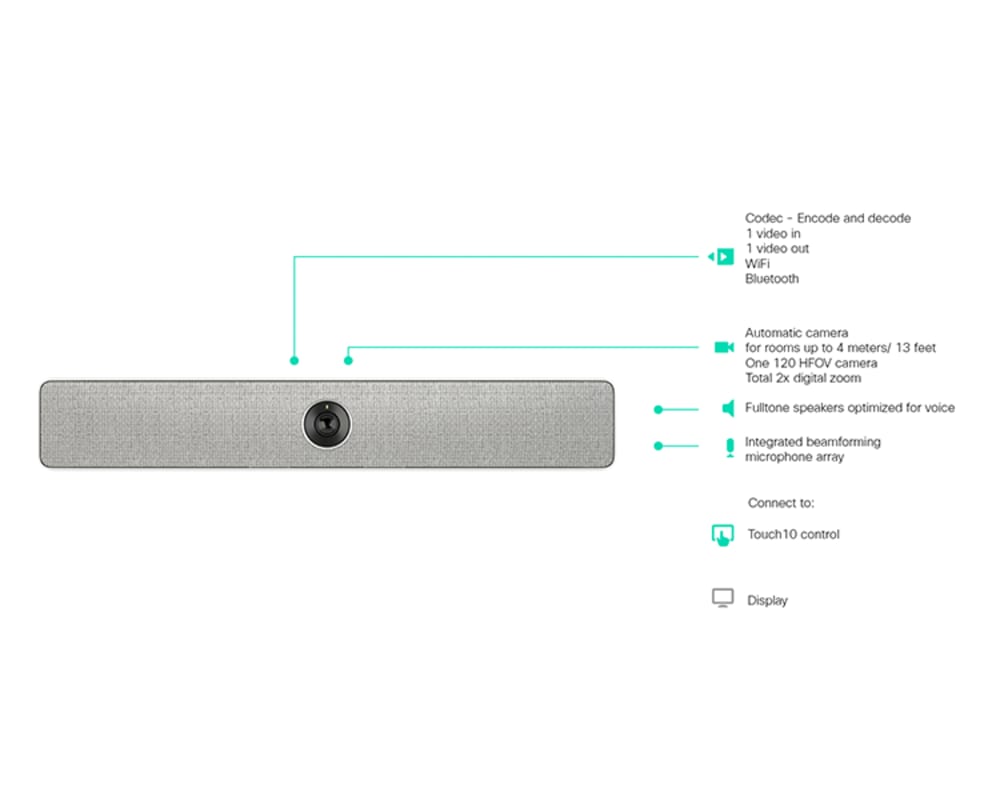

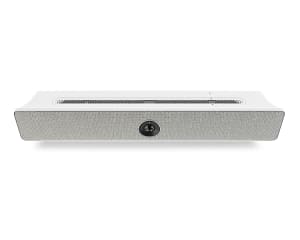

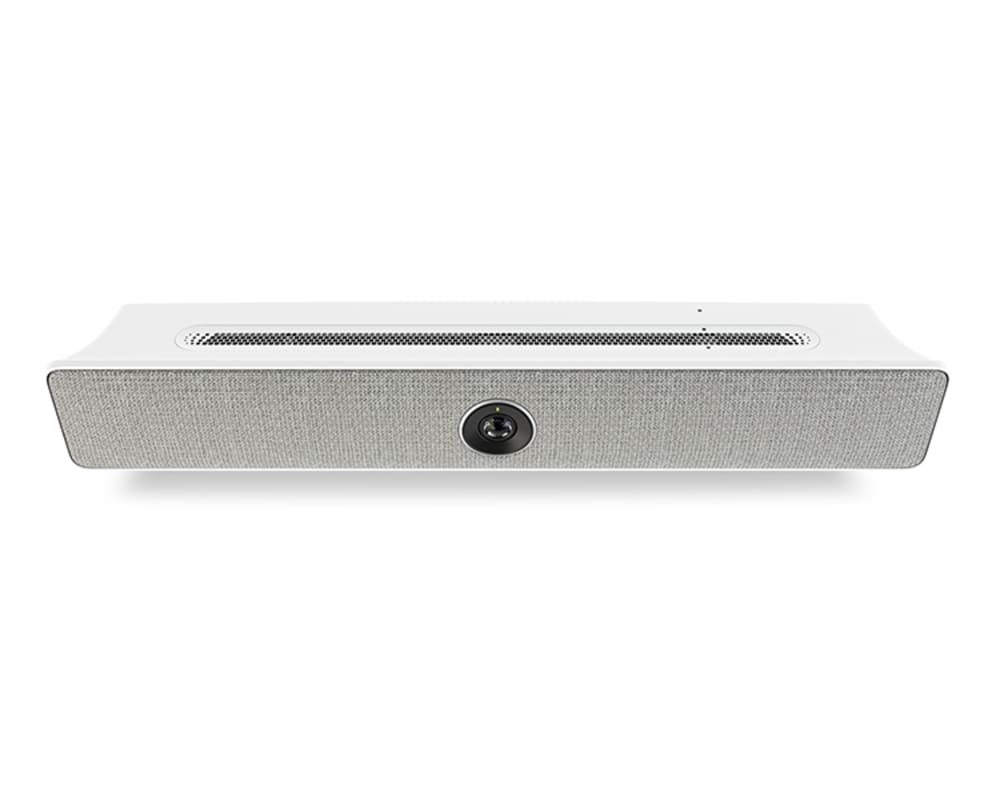

The Cisco Room Kit Mini is an Artificial Intelligence (AI)-powered video conferencing system custom-designed for the huddle workstyle, and is easy to use, deploy, and manage. It combines codec, camera, microphones, and speakers into a single device that integrates with a 4K display to bring more intelligence and usability to all of your huddle rooms and spaces.

Key features

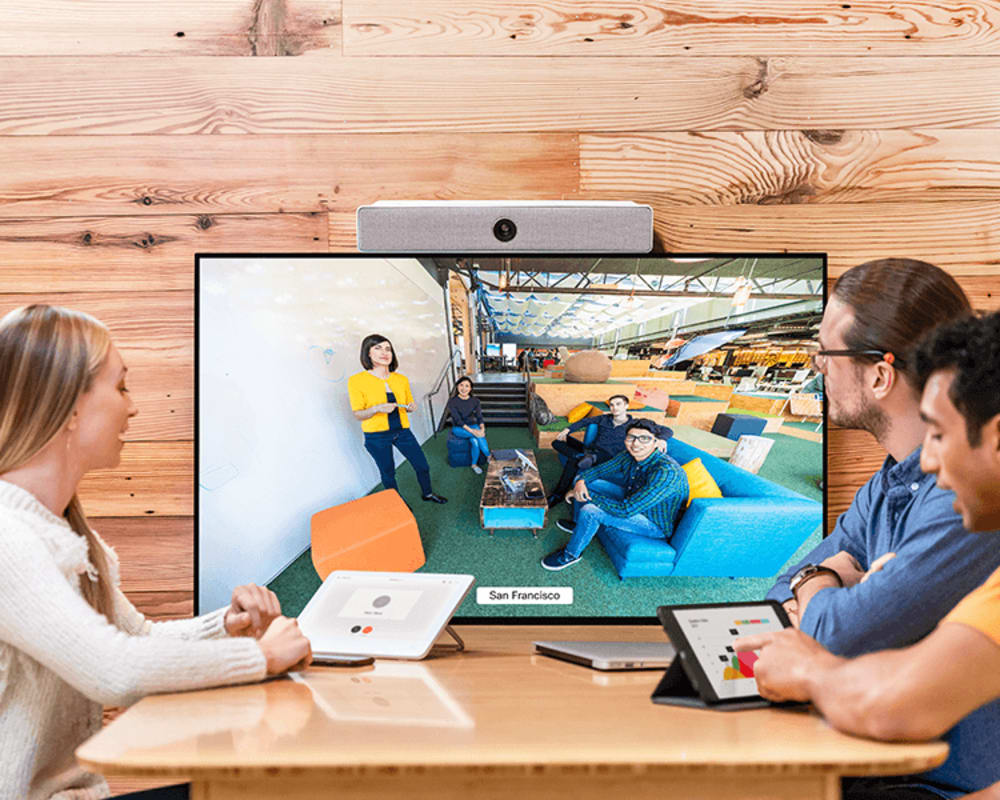

For huddle spaces for two to five people
Codec with 120-degree field of view
Integrated speakers and microphones
RoomOS, Touch 10 controller

A separate webex device licence/subscription is required to operate the device.

Technical details

Video features

Camera Overview:

4K UltraHD camera
Supports up to 60 fps (max 30 fps with best overview enabled)
8 MP image sensor
1/1.4 CMOS
5 x zoom
f/1.4 aperture
120° horizontal field of view
Auto framing (face detect)
Auto brightness, and white balance
Focus distance 1 m to infinity

Video standards:

H.264, H.265

Video inputs:

One HDMI input supports formats up to maximum 4K (3840 x 2160) at 30 fps including HD1080p60
Consumer Electronics Control (CEC) 2.0

Dual stream:

One HDMI input supports formats up to maximum 4K (3840 x 2160) at 30 fps, including HD1080p60
Consumer Electronics Control (CEC) 2.0

Wireless sharing:

Webex app (up to 3840 x 2160p5)
Cisco Intelligent Proximity client (up to 1920 x 1080p5)

Video outputs:

Two HDMI outputs support formats up to 3840 x 2160p60 (4Kp60)
Live video resolutions (encode and decode) up to 1920 x 1080p30 and p60 (HD1080p)
Consumer Electronics Control (CEC) 2.0

Audio features

Audio standards:

G.711, G.722, G.722.1, G.729, AAC-LD, and Opus

Audio features:

High-quality 20 kHz audio
Prepared for subwoofer (line out)
Prepared for inductive loop (line out)
Automatic Gain Control (AGC)
Automatic noise reduction
Active lip synchronization

Audio inputs:

Two microphones, 4-pin mini-jack
One audio in from HDMI
Internal microphone

Speakers (integrated):

High-quality speakers: five speakers in balanced configuration
Frequency response 70 Hz to 20 kHz
Amplifier power: 24W
Max output level SPL 86 dB

Audio outputs (external)

1 line out mini-jack (stereo)

Network features

DNS lookup for service configuration
Differentiated services (Quality of Service [QoS])
IP-adaptive bandwidth management (including flow control)
Automatic gatekeeper discovery
Dynamic playout and lip-sync buffering
H.245 Dual-Tone Multifrequency (DTMF) tones in H.323
RFC 4733 DTMF tones in SIP
Date and time support using Network Time Protocol (NTP)
Media adaptation and resilience
Uniform Resource Identifier (URI) dialing
Dynamic Host Configuration Protocol (DHCP)
802.1X network authentication
802.1Q Virtual LAN
802.1p (QoS and Class of Service [CoS])

Security features

Management using HTTPS and SSH
IP administration password
Menu administration password
Disable IP services
Network settings protection
Privacy cover

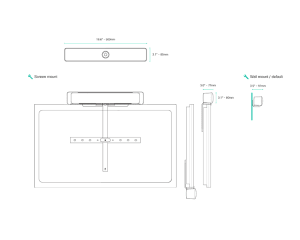

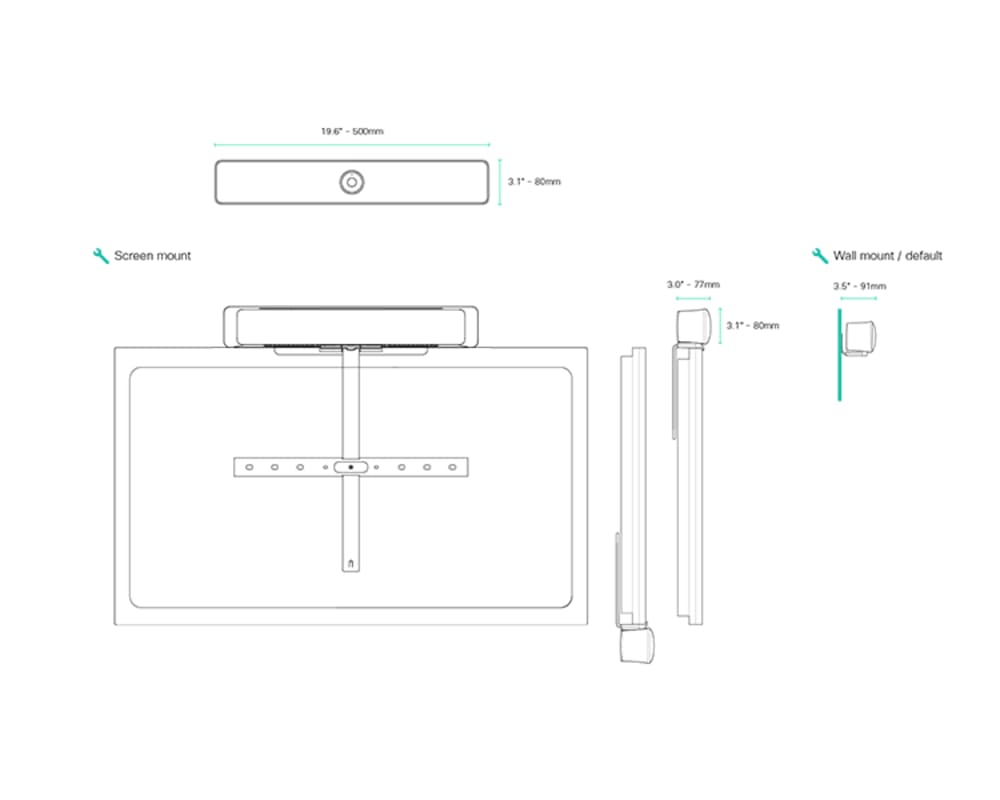

Size (H x W x D)

Device:

8.1 cm x 50 cm x 7.7cm (3.2 in x 19.7 in x 3 in)

With packaging:

32.6 cm x 60.5 cm x 21.6 cm (12.8 in x 23.8 in 8.5 in )

Weight

Device:

1.5 kg (4 lb)

With packaging:

3.2 kg (7 lb)

Software and user interface

Software compatibility:

Cisco Collaboration Endpoint Software Version 9.14.5 or later, and Cisco Webex RoomOS

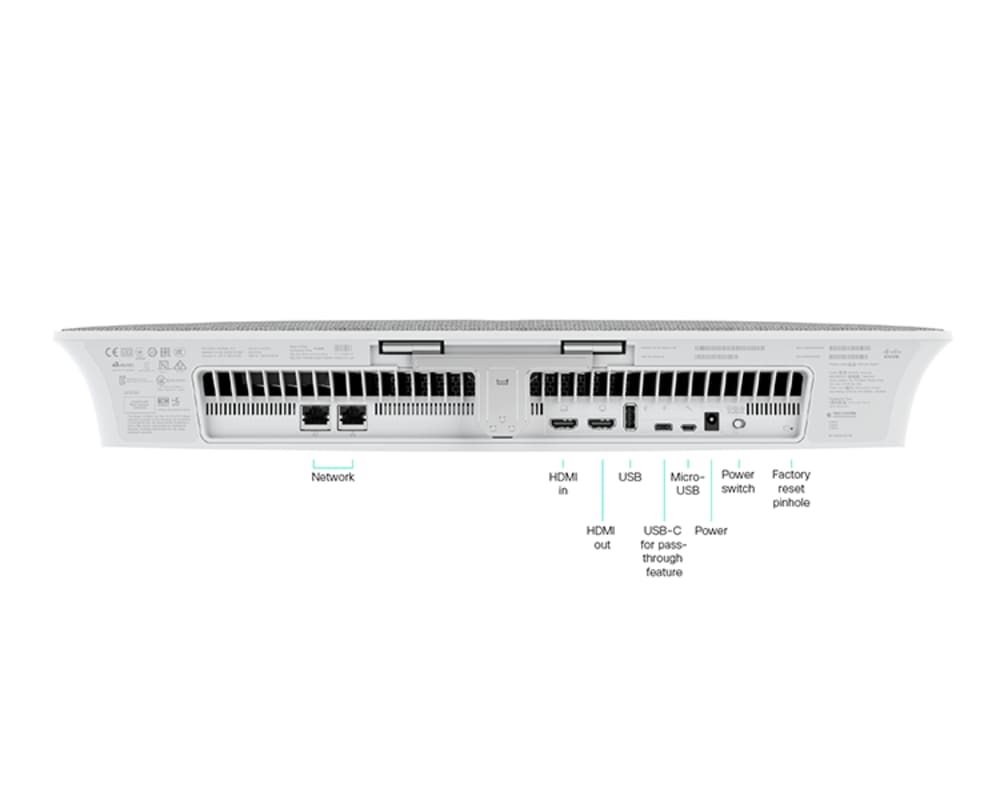

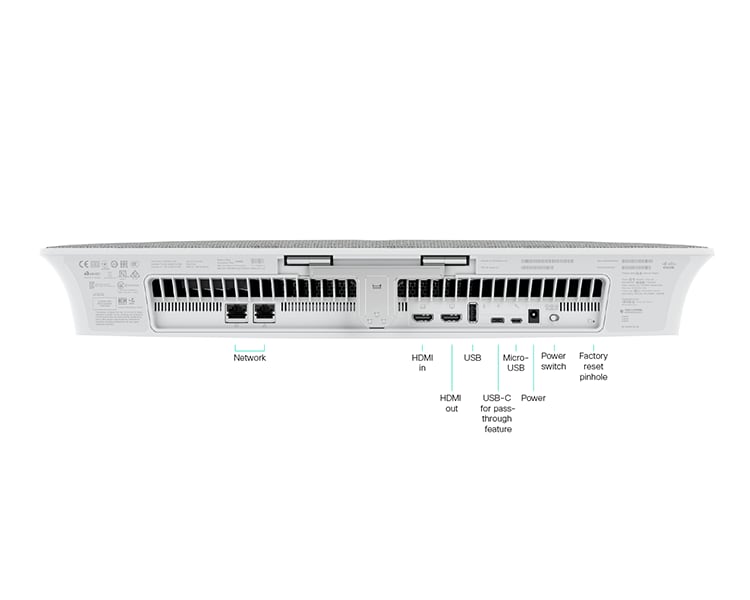

Network interfaces:

One Ethernet (RJ-45) 10/100/1000 for LAN
One Ethernet (RJ-45) for Cisco Touch 10 direct pairing
Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz, 2x2 MIMO
Note: Due to compliance regulations, it is required that 802.11d is enabled in the access point for the product to operate properly within 5725 MHz – 5875 MHz.

Using a Wi-Fi connection is a flexible option, however an Ethernet connection is always preferred for high performance.

Other interfaces:

1 USB 2.0 port type A
1 USB 2.0 port type C
1 USB port
Factory reset pinhole

Cisco applications

Cisco Unified Communications Manager (CUCM)

Native registration with CUCM
Requires CUCM Version 10.5.2 or later with device pack for Room Kit

Cisco Expressway:

Native registration with Expressway

Cisco Webex Service

3rd party applications: Third-party H.323 Gatekeepers and standards-based SIP proxies

Power

100 to 240 VAC, 50/60 Hz, 12V DC input
Average 20W, peak 70W
Must be used with power supply FSP FSP070-AHAN2 or AcBel ADF019

Compliance

Directive 2014/53/EU (Radio Equipment Directive) for the radio versions
Directive 2014/30/EU (EMC Directive) for the non-radio versions Directive 2014/35/EU (Low-Voltage Directive) for the non-radio versions
Directive 2011/65/EU (RoHS)
Directive 2002/96/EU (WEEE)
NRTL approved (product safety)
FCC CFR 47 Part 15B (EMC) – Class A
FCC CFR 47 Part 15C (RF)
FCC CFR 47 Part 15E (RF)
FCC Listed (radio equipment)
